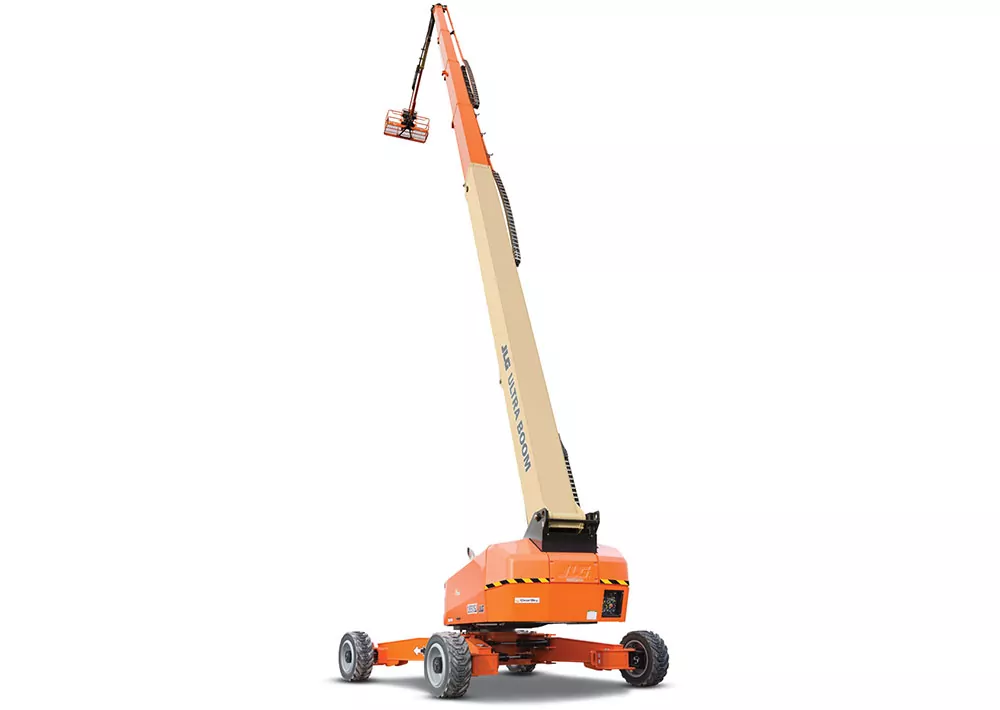

JLG 1850SJ Boom Lift
Details
The JLG 1850SJ is the highest reaching telescopic, self-propelled boom lift to ever hit the market. This Ultra Series telescopic boom lift features 19 stories of working height and a brand new chassis. The 1850SJ is much faster to full height, so operators can spend more time working and less time positioning the boom. The axles take approximately one minute to extend or retract. They’re able to pivot in and out and do not telescope like extendable axles on other Ultra Series boom lifts.
Key Specs
- Platform Height: 185 ft 7 in. / 56.57 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 80 ft / 24.38 m
Key Features
- Much faster to full height
- No oversized load permit needed (over weight permit is required for highway transportation)
- Telescoping jib provides 2.9 million cubic feet of work area
- Axles take approximately one minute to extend or retract
- Equipment Type
- Aerial Lifts / Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
52.8 gal. / 199.87 L
Engine Type – Diesel:
DEUTZ TD3.6L 99.8 hp
Drive Speed – 4WD:
2.8 mph / 4.51 km/h
Grade-ability – 4WD:
40 %
Platform Capacity – Restricted:
1000 lb / 453.59 kg
Platform Capacity – Unrestricted:
500 lb / 226.80 kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside (axles extended):
21 ft 8 in. / 6.6 m
Turning Radius – Outside (axles retracted):
31 ft 3 in. / 9.53 m
Jib – Range of Articulation:
120 Degrees
Ground Clearance:
1 ft 4 in / 0.41 m
Platform Height:
185 ft 7 in / 56.57 m
Horizontal Outreach:
80 ft / 24.38 m
Machine Weight:
60300 lb / 27351.62 kg
- Much faster to full height
- No oversized load permit needed (over weight permit is required for highway transportation)
- Telescoping jib provides 2.9 million cubic feet of work area
- Axles take approximately one minute to extend or retract
