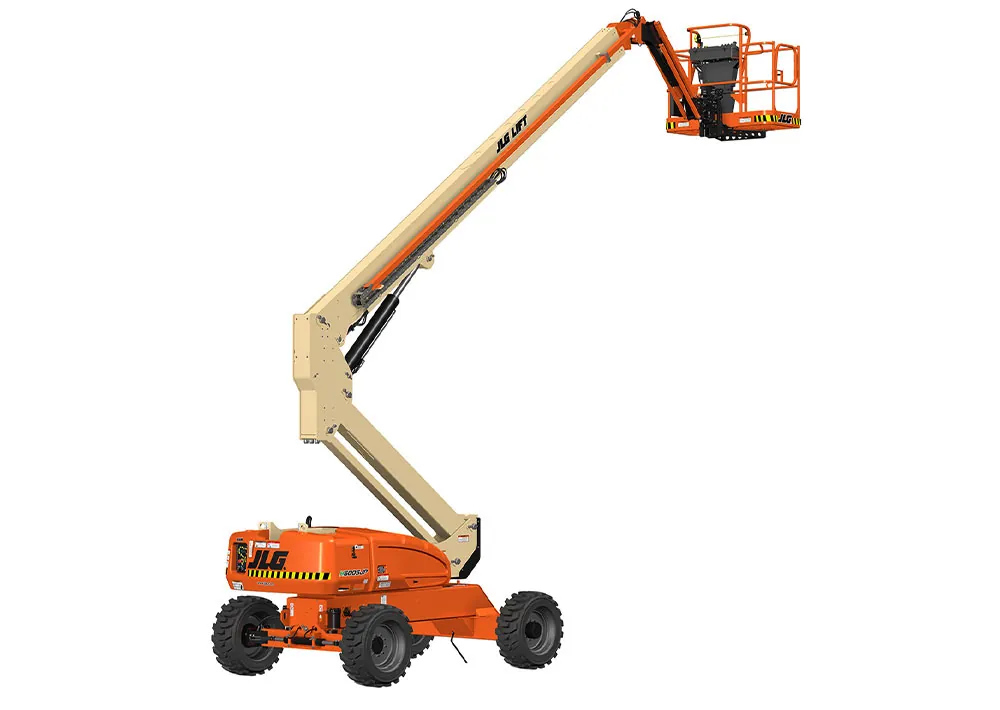

JLG H600SJP Boom Lift
Details
Reach up to 60 ft with the JLG H600SJP telescopic boom lift. Whether your jobs include industrial applications, maintenance, construction or anything in between, the H600SJP lift delivers zero emissions and reduced noise levels for operation on most any terrain in many environments.
Key Specs
- Platform Height: 60 ft 4 in. / 18.39 m
- Platform Capacity: 500 lb / 226.80 kg
- Machine Width: 7 ft 11 in. / 2.41 m
Key Features
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
- Equipment Type
- Aerial Lifts / Boom Lifts
Batteries:
8 x 6V, 415 A-h
Electrical System:
48 Volts DC
Generator / Engine – Brand:
Kubota
Generator / Engine – Fuel Tank Capacity:
13 gal. / 49.21 L
Generator / Engine – Fuel Type:
Diesel
Generator / Engine – Horsepower / Kilowatts:
6.7 hp / 5 kW
Drive Speed – Platform Lowered:
3 mph / 4.83 km/h
Grade-ability – 2WD:
30 %
Grade-ability – 4WD:
45 %
Jib – Range of Articulation:
145 degrees
Platform Capacity:
500 lb / 226.80 kg
Swing:
400 Degrees
Swing Type:
Non-Continuous
Turning Radius – Outside:
15 ft 4 in. / 4.67 m
Machine Height:
8 ft 4 in. / 2.54 m
Machine Length:
33 ft 4 in. / 10.16 m
Machine Width:
7 ft 11 in. / 2.41 m
Platform Dimension A:
2 ft 6 in. / 0.76 m
Platform Dimension B:
6 ft / 1.83 m
Horizontal Outreach:
44 ft 5 in. / 13.54 m
Platform Height:
60 ft 4 in / 18.39 m
Machine Weight:
17210 lb / 7806.32 kg
- Maneuverability – move over uneven surfaces with Automatic Traction Control
- Productivity – work longer with longer duty cycles
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
