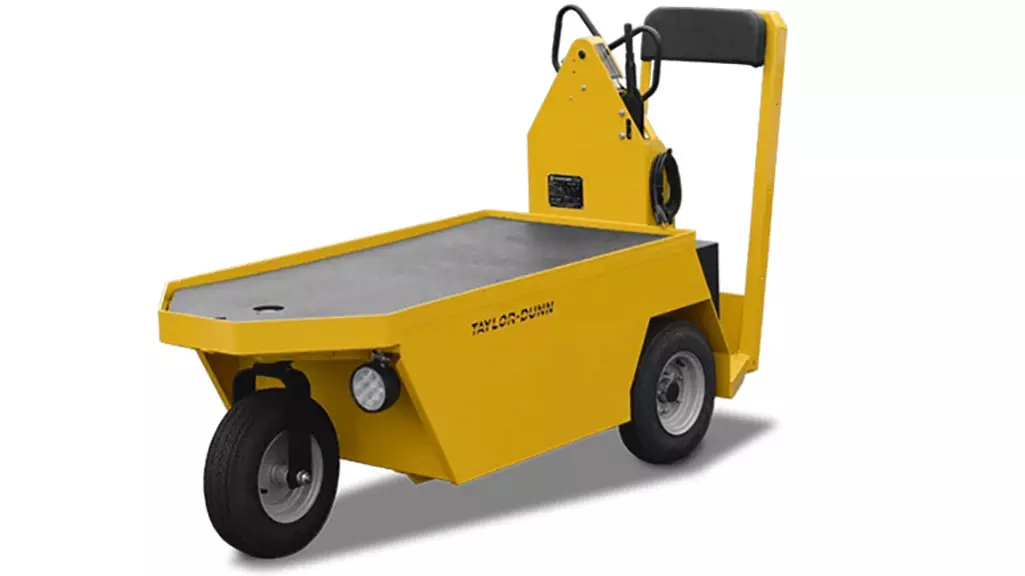

Taylor-Dunn SC-100 Stock Chaser Taylor-Dunn Utility Vehicles

Details

The Taylor-Dunn SC-100 stock chaser is designed with an all steel unitized body with automotive differential and 24 or 36 volt GT drive system, providing years of service in rugged applications. Equipped with a 4, 5 or 6 step ladder, the SC-100 allows the operator to pick materials from higher stock locations.

This Stock Chaser, configured with a roll out or lift out battery box, can provide 24 hours of service in any warehousing application. Options like multilevel shelving, clipboard, automotive steering wheel or extended deck overlay provide maximum functionality for your operation.

Equipment Type
Stock Chasers / Utility Vehicles

Engine & Drivetrain

Battery Range:
20/30 mile (32/48 km)

Drive System Type:
GT Drive

Engine Type:
24V, 36V AC Electric

Fuel System/Battery:
6V Lead Acid

Horsepower:
4/4.7 HP

Top Speed:
8 mph (13 km/h)



Dimensions

Deck Size:
29.5 x 58 in (75 x 147 cm)

Estimated Dry Weight:
970 lb (440 kg)/1,095 lb (497 kg)

Hitch Towing Rating:
5,000 lb (2268 kg)

Overall Vehicle Size (L x W x H):
86 x 29.5 x 48 in. (218 x 75 x 123 cm)

Payload Capacity:
1,000 lb (453.6 kg)

Person Capacity:
1

Turning Radius:
67 in (170 cm)

Wheelbase:
47 in (120 cm)



Brakes

Front/Rear Brakes:
Rear Disc

Parking Brake:
Hand Operated Parking Brake



Specifications

Instrumentation:
Smart View Display, F-N-R Switch, Reverse Alarm, DC/DC Converter, Electric Horn

Other Standard Features:
Padded Backrest

Tilt Steering:
Not Equipped



Tires / Wheels

Electronic Power Steering:
Not Equipped

Front Tires:
4.80 x 8, Load Range B, Pneumatic

Rear Tires:
4.80 x 8, Load Range B, Pneumatic



Suspension

Rear Suspension:
Solid Mounted Rear Axle

  • Heavy Duty Steel Frame for Proven Performance
  • OEM Parts
  • Highly Maneuverable
  • Tight Turning Radius
  • 24 or 36 Volt Options
  • Customizable
  • Cloverleaf Steering Wheel Design
  • Extended Operator’s Compartment
  • Low Step Height
