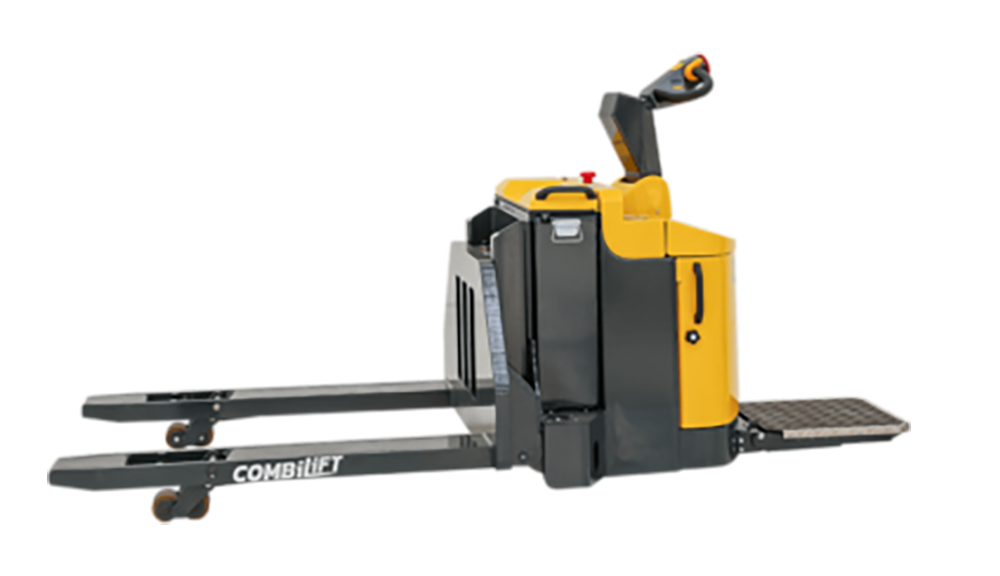

Combilift COMBI-PPT Pallet Mover Combilift Equipment Inventory

Details

Equipped with our patented multi-position tiller arm the Combi-PPT offers safer operation, maximum operator visibility and narrow aisle performance.

Equipment Type
Forklifts / Pallet Trucks (floor)

Max. Lift Height:
4″

Lowered Height:
7″ (other sizes available)

Overall Height:
41″

Overall Length:
96″

Ground Clearance Under Fork/Platform:
0.8″

Ground Clearance to Center of Wheelbase:
0.8″

Width:
37″

Outside Spread of Fork/Platform:
24″ (other sizes available)

Track Front:
18″

Load Centre Distance:
24″

Overhang Front:
22″

Length From Face of Fork/Platform:
48″

Fork/Platform Length:
48″ (other sizes available)

Minimum Outside Radius:
75″ mm

Capacity:
17,300 lbs

Maximum Ground Speed:
6 km/h

Gradability:
5%

Battery Capacity:
24 V / 375 Ah

Front Tire (Polyurethane) x 8:
OD 5″ / Width 2″

Rear Tire (Vulkollan) x 2:
OD 12″ / Width 5″

Standard Color:
Yellow & Grey

AC Electric Traction Motor x 2:
24 V / 4 kW

AC Electric Pump Motor:
24 V / 5 kW

Unladen Weight with Battery:
5,000 lbs

  • AC Motor Technology
  • Power Steering
  • Rear Wheel Drive
  • Patented Multi-Position Tiller Arm
