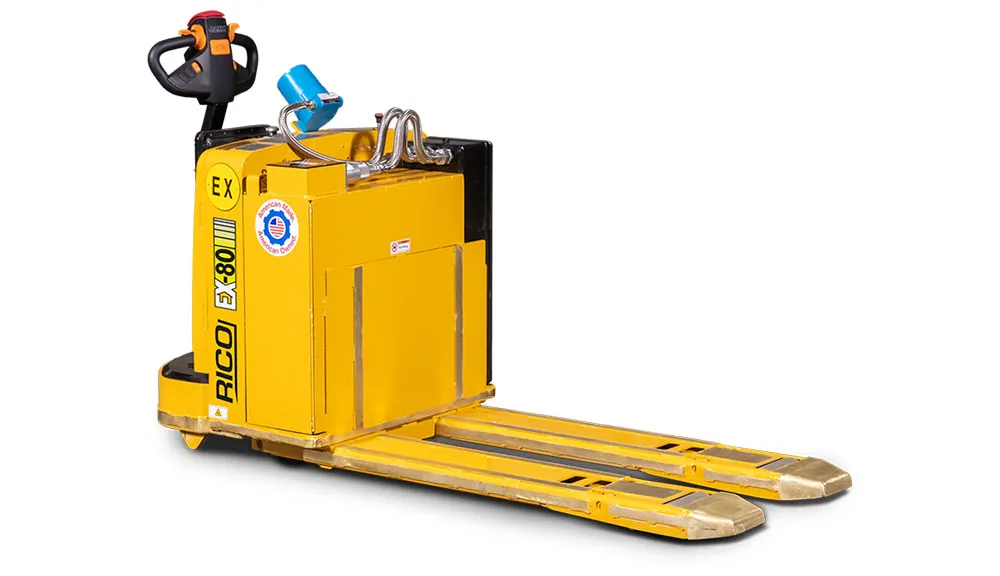

RICO HPWH-EX-80 Pallet Walkie Handler
Details
The RICO HPWH-EX-80 Pallet Walkie Handler is the perfect solution for hazardous environments requiring precision and safety. With a load capacity of up to 8,000 lbs., this explosion-proof lift truck is built to handle tough jobs with ease. Its compact design ensures exceptional maneuverability, making it ideal for narrow aisles and tight spaces.
Engineered for operator efficiency, it features a heads-up BDI display for clear battery status and static conductive wheels to reduce the risk of sparks. All exposed components, including forks, are protected with brass and aluminum alloys for added safety. Maintenance is a breeze thanks to easy access to serviceable components and a cost-saving battery box that eliminates the need for an explosion-proof battery.
Compliant with UL583 specifications and approved for Class 1, Division 1 & 2 and Class 2, Division 1 & 2 environments, the HPWH-EX-80 combines top-notch safety features with reliability and efficiency. Upgrade your material handling operations with a lift truck designed to excel in demanding conditions.
- Equipment Type
- Forklifts / Pallet Trucks
Capacity:
up to 8,000 lbs
Steering:
Fully fluid linked power steering system
Hyster Model:
W80Z
Yale Model:
MPW080E
Voltage:
24
Wheelbase:
49.4 in
Turning radius, lowered:
59 in
Turning radius, raised:
54.5 in
Overall Lift Height (TOF):
9.4 in
Overall fork lifting height:
6 in
- Exceptional maneuverability: Compact design increases ability to operate in narrow aisles or small spaces.
- Ease of Maintenance: Easy access to serviceable components.
- Reduced costs: Battery box eliminates the need for an EX battery.
- Inventory control: Industry standard components for local servicing and dealer sourcing.
- Operator efficiency: Heads up BDI display enables clear view of battery status in normal operating position.
- RIGOROUS TESTING: Built to UL583 specifications, and approved by FM Global, a Nationally Recognized Testing Laboratory.
- Static conductive wheels. Prevent sparks, helping to provide a working environment with reduced peril and hazardous conditions.
- Protected Surfaces: Exposed components on the perimeter of the truck, including forks, are protected with brass and aluminum alloys eliminating the possibility of mechanical sparking.
- Drive, pump and electrical enclosures house only electrical components and are approved to be included on EX-rated lift trucks. All RICO enclosures have been tested for approval in an EX-rated environment by FM Global
- Flexible conduit (FC) cables house regular cabling, which is sealed to ensure safe use in an EX-rated environment. The FC cable provides flexibility and space saving.
