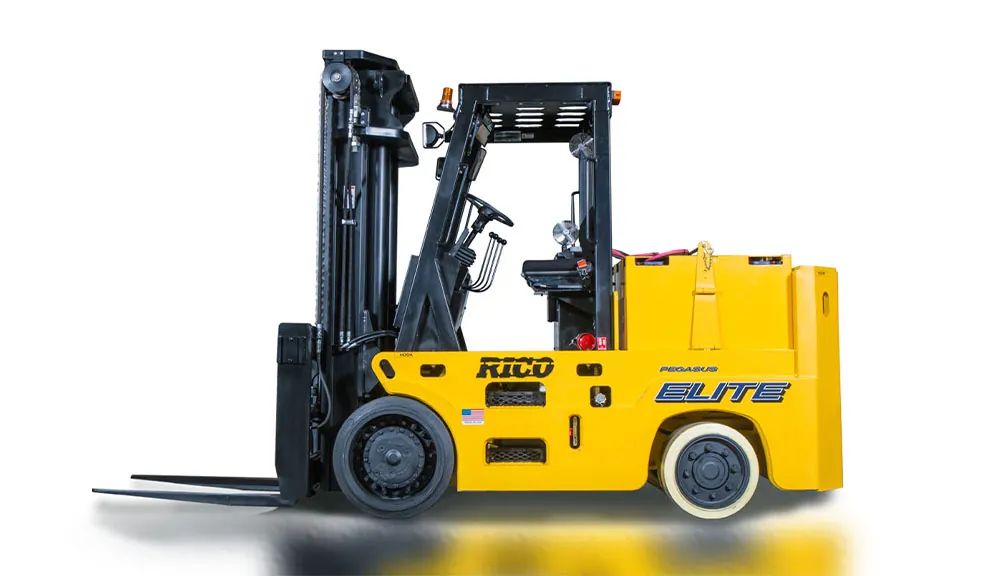

RICO AC Electric Pegasus Counterbalance Forklift Series
Details
The RICO Electric Pegasus Counterbalance Series delivers unmatched power and comfort for heavy-duty applications. With a load capacity of 20,000–40,000 lbs., its electric design ensures efficient performance while reducing energy consumption. Featuring fingertip hydraulic controls, safety-enhancing LED lights, and an ergonomic cab with advanced options like air conditioning and heated seating, it provides both reliability and operator ease. Built for strength and precision, it’s the ultimate solution for demanding industrial tasks.
- Equipment Type
- 4 Wheel Electric Forklift Trucks / Forklifts
Capacity:
20,000 – 40,000 lbs
Power:
21 HP 72 volt high torque drive motor
Operator Cab
- Meets ANSI B56.1 operator protection standards
- Tilt-steering column with directional/ gear shift lever
- Cup Holder with tray
- LED Work Light Package including head lights, tail lights, brake lights, reverse lights and strobe lights.
- Low profile air suspension seat for a comfortable ride for the operator which includes lumbar support, swivel, seat belt, operator present sensor, and a fold down arm rest.
- Open cab design for increased visibility
- Two mirrors for visibility toward the rear
- All instruments are positioned within clear visibility of the operator
- Infinite variable hydraulic lift controls
- Brake pedal and inching control
- Emergency stop button
- Parking brake
Strength & Electric Power
- All steel constructed chassis for strength
- Counter weight is a combination of stacked steel plate and solid poured lead depending on the requirements to optimize both cost and overall envelope of truck
- Cut-out for easily visible hydraulic fluid sight glass
- Integrated lifting points for safe handling and transport
- Low rear chassis profile for increased operator visibility
- Cab access from either side with large steps and easy to reach hand rails
- Battery compartment accommodates two 36 volt batteries
- Heavy duty steer axle
- Steer cylinder located inside a steel frame
- Large capacity hydraulic tank for additional cooling, and future expansion
- Heavy duty mast design
- Wearable carriage side pads (adjustable)
- Heavy duty side shift carriage (ball and roller design)
- Primer and coated paint
- Mast pivot – grease able and replaceable bearings
- Planetary drive axle rated for durability and high capacity
- Standard with oil cooled wet disc brakes
- Optional external forced brake cooling to reduce wear and increase life
- Poly tires that combine high load capabilities with superior traction and reduced vibration for a smoother ride
- Programmable control with onsite customization
- Easy access roll out hydraulic motor
- Hydraulic oil coolers
Mast & Forks
- Clear view upright mast design for maximum visibility
- Telescopic I-beam designed 2-stage mast that is easily removable
- Pin-mounted tube style forks that are customizable for any application
- Integral side shifting fork positioner utilized to reduce overall length of vehicle while providing both functions as standard
- Solid forged forks
- Standard tilt forward and back
- Limitless carriage attachments designed to meet specific applications
- High Visibility Carriage
- Tube Style Forks
