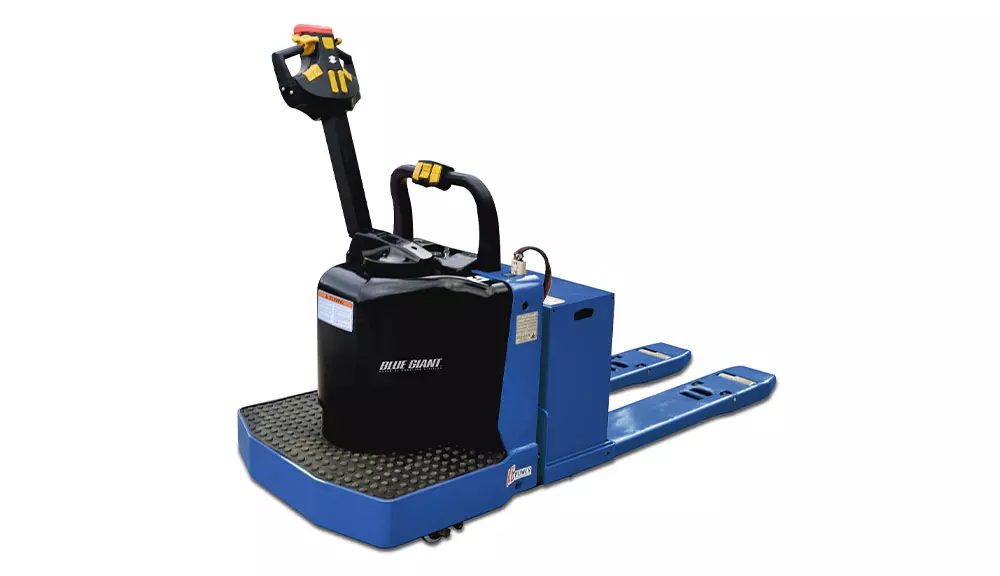

Blue Giant EPJ-60R Rider Pallet Truck Blue Giant

Details

The EPJ-60R from Blue Giant is designed to suit a variety of demanding applications. It can be customized to suit facility requirements or the needs of a specific application. Built-in diagnostics anticipate service requirements, reducing the risk of unplanned downtime.

Equipment Type
Forklifts / Pallet Trucks

Capacity:
6,000 lbs (2,727 kg)

Lowered Fork Height:
3.25″ (83 mm)

Raised Fork Height:
5.5″ (140 mm)

Fork Length:
46.9″ (1,191 mm)

Fork Width:
9″ (229 mm)

Fork Spread:
27″ (686 mm)

Turning Radius:
80.3″

PERFORMANCE

  • 24-volt AC traction motor enables speeds of up to 9 mph
  • 24V ZAPI programmable travel controller supports simple and precise truck positioning
  • Creep speed control allows for easier maneuvering at low speeds in tight places
  • Travel speed remains constant relative to throttle position regardless of the load
  • Regenerative braking kicks in when the control arm is in the vertical or horizontal position
  • Travel speed: 9.0mph (unloaded) and 6.5mph (under load)

ERGONOMICS

  • Ergonomic handle with lift, lower, and infinitely variable speed control
  • Microcellular rubber mat supports operator comfort during ride-on applications

STRUCTURAL INTEGRITY

  • High speed grab bar offers operator security
  • Fork size: 48″ (1,219 mm) standard
  • Pallet entry slide supports easy pallet access by lifting the fork up and over the bottom board
  • Heavy-duty pull rods
  • Heavy-duty two-piece cover protects major components from impact damage
