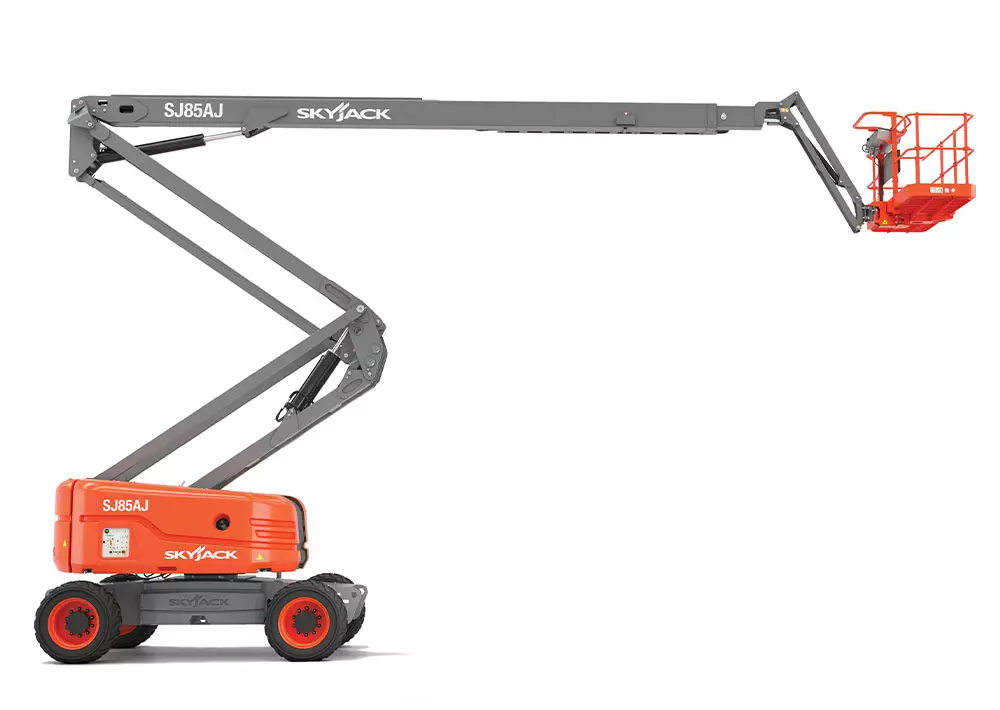

Skyjack SJ85 AJ Boom Lift
Details
Skyjack SJ85 AJ articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.
- Equipment Type
- Aerial Lifts / Boom Lifts
Work Height
91′ (27.74 m)
Platform Height:
85′ (25.91 m)
Up and Over Height:
34′ (10.36 m)
Platform Size:
36” x 96” (0.91 x 2.4 m)
Weight:
36,300 lbs (16,465 kg)
Drive Speed (High Speed):
3 mph (4.8 km/h)
Capacity:
500 / 750 lbs (227 / 340 kg)
Horizontal Reach:
56′ (17.07 m)
Diesel Engine:
Deutz TD2.9L – 74 HP (55 KW)
Fuel Tank Capacity:
30.4 gal. (115L)
- EASYDRIVE™ Direction sensing drive and steer controls
- SPEEDYREACH™ Negative boom angle capability
- SKYRISER™ True vertical rise
- AXLDRIVE™ Axle-based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Oscillating steer axle
- Drivable at full height
- 45% Grade-ability
- Wet disc SAHR brakes (front and rear axle)
- Relay based control system with SKYCODED™ color coded and numbered wiring
- Deutz TD2.9L4 diesel engine
- Swing out engine tray
- Swing up cowlings for easy access
- Lockable power disconnect switch
- Proportional controls
- 500 / 750 lbs (227 / 340 kg) Dual capacity
- 36” x 96” Platform
- Bolt-in platform railing system
- Lanyard attachment points
- Tri-entry sliding mid-rails
- Secondary Guarding Electrical (SGE)
- Overload sensing system
- 110V AC Outlet on platform with GFI
- Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
- Single point emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- 360° Continuous turret rotation
- Tie down/lifting lugs
- 18 x 625 Grip lug foam-filled tires
- Telematics ready
- 2-Year Gold Leaf Warranty (5-year structural warranty)
