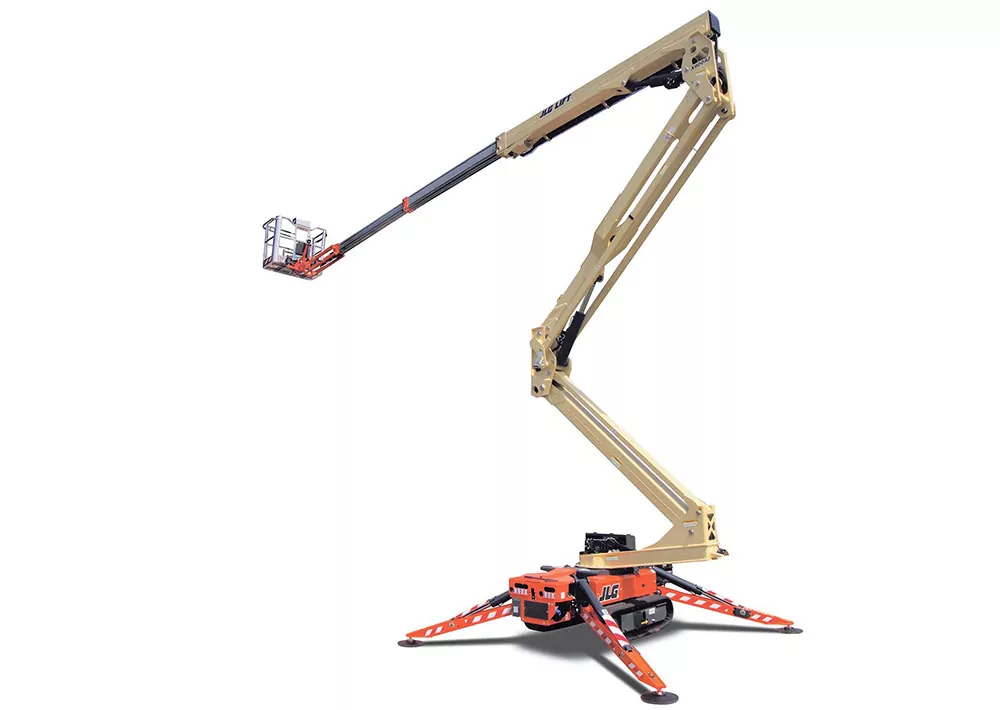

JLG X600AJ Boom Lift

Details

JLG X600AJ Compact Crawler boom lifts feature low weight and rubber tracks that allow you to go more places around the job site. These lifts climb slopes with ease thanks to their tracked wheel carriage, and their narrow chassis allows for access through gates, yards, standard doorways and public buildings. This makes a JLG X600AJ Compact Crawler lift ideal for various jobs both indoors and out.

Key Specs

  • Machine Width: 2 ft 7 in. / 0.79 m
  • Platform Capacity: 500 lb / 226.80 kg

Key Features

  • Drive speed control for smooth operation on a variety of terrains
  • 500 lb unrestricted platform capacity
  • Regenerative valve on telescopic cylinder resulting 50% increase in speed
  • Auto levels on uneven surfaces
  • Travels through a single doorway
Equipment Type
Aerial Lifts / Boom Lifts

Engine Type – Electric:
100Ah 72 V Lithium-Ion

Grade-ability:
28 %

Outriggers or Stabilizers:
Yes

Jib – Range of Articulation:
89 Degrees

Platform Capacity:
500 lb / 226.80 kg

Slope Tolerance:
15 °

Swing:
360 Degrees

Swing Type:
Non-Continuous

Horizontal Outreach:
30 ft / 9.14 m

Working Height:
66 ft / 20.12 m

Platform Height:
49 ft / 14.94 m

Machine Weight:
6571 lb / 2980.56 kg

  • Drive speed control for smooth operation on a variety of terrains
  • 500 lb unrestricted platform capacity
  • Regenerative valve on telescopic cylinder resulting 50% increase in speed
  • Auto levels on uneven surfaces
  • Travels through a single doorway
