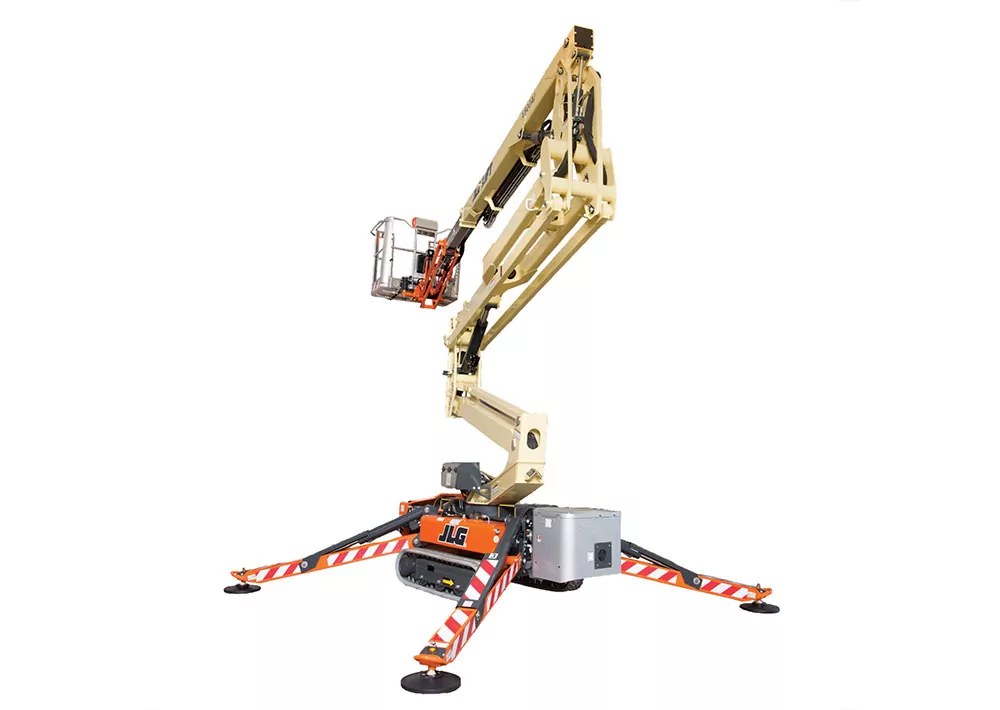

JLG X500AJ Boom Lift
Details
JLG X500AJ Compact Crawler boom lifts feature low weight and rubber tracks that allow you to go more places around the job site. These lifts climb slopes with ease thanks to their tracked wheel carriage, and their narrow chassis allows for access through gates, yards, standard doorways and public buildings. This makes a JLG X500AJ Compact Crawler lift ideal for various jobs both indoors and out.
Key Specs
- Machine Width: 2 ft 7 in. / 0.79 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Fits through a standard doorway
- Auto levels on uneven surfaces
- Equipment Type
- Aerial Lifts / Boom Lifts
Engine Type – Electric:
100Ah 48 V Lithium-Ion
Grade-ability:
28 %
Jib – Range of Articulation:
89 Degrees
Platform Capacity:
500 lb / 226.80 kg
Slope Tolerance:
12 °
Swing:
360 Degrees
Swing Type:
Non-Continuous
Horizontal Outreach:
23 ft / 7.01 m
Working Height:
56 ft / 17.07 m
Platform Height:
49 ft / 14.94 m
Machine Weight:
5071 lb / 2300.17 kg
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Fits through a standard doorway
- Auto levels on uneven surfaces
