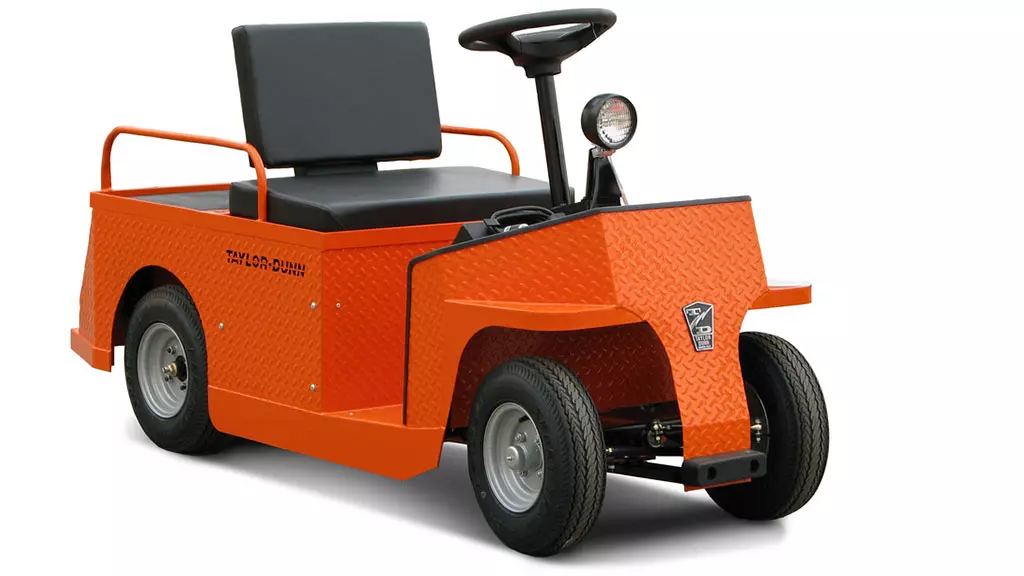

Taylor-Dunn SS-546 Personnel Carrier Taylor-Dunn Utility Vehicles

Details

Use a Taylor-Dunn Personnel Carrier to transport you or a group in a safe, timely and cost-effective manner.

This 4 wheel Stepsaver provides time proven reliable personnel transportation for executive, supervisors, security, maintenance, mail carriers and other workers whose job keeps them on the go. Stepsaver’s versatile design allows you to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 600 lbs. of load on the job site. With its innovative articulated front axle design, Stepsaver offers a short turning radius, that can maneuver dependably around warehouses, industrial complexes, resorts and hotels, shopping malls, hospitals and other commercial complexes. It’s all welded steel unitized body and frame is built to last for years of use, with standard front bumper and an automotive steering wheel. Modularized control system design provides ease of maintenance on all electrical systems. Geared steering, 9 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.

Equipment Type
Personnel Carriers / Utility Vehicles

Engine & Drivetrain

Battery Range:
20 mile (32 km)

Drive System Type:
Direct Drive

Engine Type:
24V DC Electric

Fuel System/Battery:
6V Lead Acid

Horsepower:
4.5 HP

Top Speed:
9 mph (14 km/h)



Dimensions

Deck Size:
30 x 19 in (76 x 48 cm)

Estimated Dry Weight:
830 lb (376 kg)

Hitch Towing Rating:
2,000 lb (907 kg)

Overall Vehicle Size (L x W x H):
89 x 30 x 41 in (225 x 76 x 105 cm)

Payload Capacity:
600 lb (272 kg)

Person Capacity:
2

Turning Radius:
81 in (205 cm)



Brakes

Front/Rear Brakes:
Two Wheel Mechanical Rear Drum

Parking Brake:
Foot Operated Parking Brake



Specifications

Adjustable Driver Seat:
Not Equipped

Instrumentation:
Battery Discharge Indicator, Forward/Reverse Selector, Key Switch, Seat Switch

Lighting:
Headlight, Taillight, Stop Light

Other Standard Features:
Foam Padded Cushion and backrest, Flip Down Seat for Passenger

Seat Covering:
Black Vinyl

Tilt Steering:
Not Equipped



Tires / Wheels

Electronic Power Steering:
Not Equipped

Front Tires:
4.80 x 8, Load Range B, Pneumatic

Rear Tires:
4.80 x 8, Load Range B, Pneumatic



Suspension

Front Suspension:
Articulated Front Axle

Rear Suspension:
Rear Coil Springs

  • Durable and Reliable
  • OEM Parts
  • Compact Design and Tight Turning Radius
  • Flip Down Seat
  • High Occupancy Transportation
  • Customizable
  • Low Speed
  • Equipped With Safety Lights and Alarms
