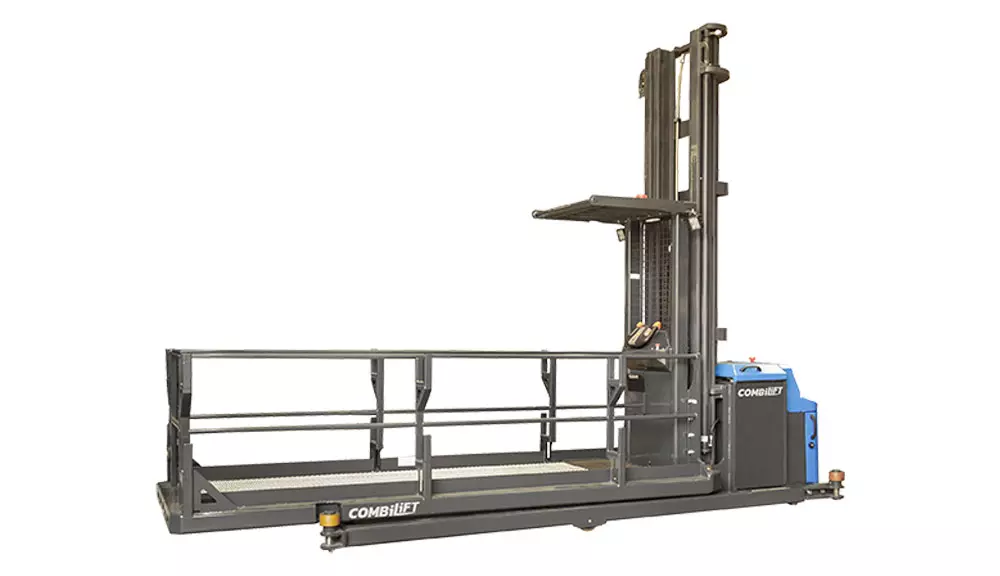

Combilift COMBI-OP Order Picker

Standard Lift Height:
236″

Free Lift Height:
50″

Height Mast Closed:
148″

Mast Raised:
334″

Overall Length:
186″

Ground Clearance Under Mast:
2 ¼”

Ground Clearance to Center of Wheelbase:
2 ¼”

Height Over Guard:
98″

Width Across Rollers:
56 ½”

Platform Outer Width:
50 ½”

Platform Inner Width:
35 ½”

Track Front:
44″

Load Center Distance:
52″

Overhang Front:
90″

Wheelbase:
87″

Overhang Back:
8 ½”

Length from Face of Platform:
60″

Approach Angle:
1 ½°

Ramp Angle:
6°

Departure Angle:
20°

Turning Radius:
110″

Platform Height:
12″

Platform Length:
125 ½”

Capacity:
1,000 lbs

Unladen Weight (No Battery):
8,900 lbs

Maximum Ground Speed:
6 mph

Gradability:
2%

AC Rear Drive:
5 ½ HP

AC Pump Motor:
7 HP

Battery:
48 V x 700 Ah

Vulkollan Front Tire x 4:
OD 6″ / Width 2″

Vulkollan Rear Tire:
OD 12″ / Width 5″

Standard Color:
Yellow & Grey
