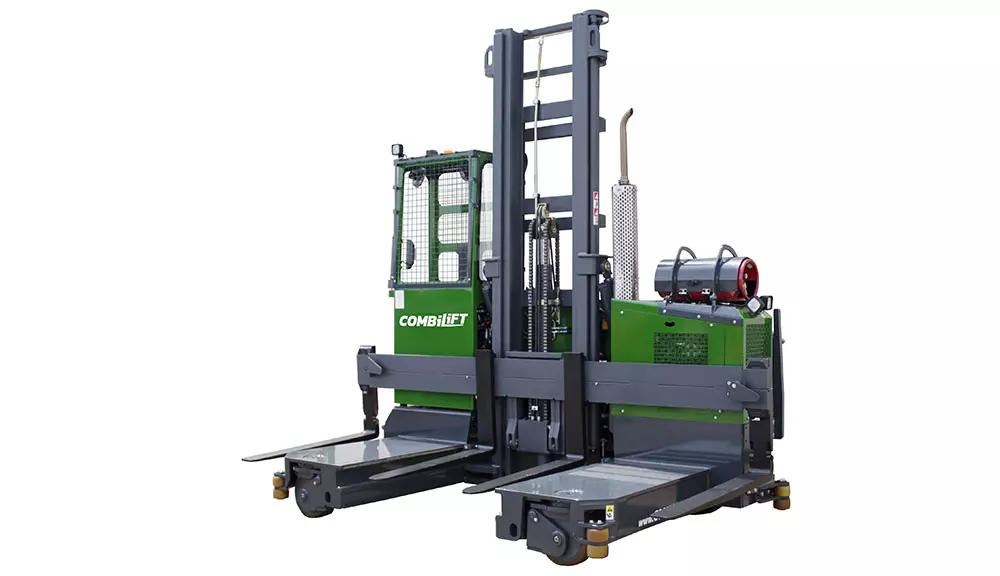

Combilift COMBI-GT Sideloader Forklift Combilift Equipment Inventory

Details

The COMBI-GT side loader forklift is designed for the safe, space saving and productive handling of long and bulky loads in very narrow aisles.

Equipment Type
Forklifts / Very narrow aisle

16 x 7 – 12 Rear Tire (Super Elastic) x2:
OD 23” / Width 10”

350 / 150 – 280 Front Tire:
OD 14” / Width 6”

3 ltr GM LPG:
65 HP

Backward Tilt:
4 ½°

Capacity:
6,000 lbs

Fork Section:
2” x 6” x 24”

Forward Tilt:

Frame Opening:
55”

Free Lift Height:
104”

Gradeability:
10%

Ground Clearance to Center of Wheelbase:
5”

Ground Clearance Under Mast:
5”

Height Mast Closed:
157”

Height Over Cab (without work lights):
114”

Length from Face of Fork:
26”

Load Center Distance:
12”

Mast travel:
26”

Max. Mast Raised:
303”

Maximum Ground Speed:
7 ½ mph

Outside Spread of Fork Arms:
131 ½”

Overall Length:
50”

Overall Width:
135”

Overhang Back:
6”

Overhang Front:
6”

Platform Height (with front lowered):
16 ½”

Platform Length:
24”

Standard Color:
Green & Gray

Track:
38”

Unladen Weight:
18,000 lbs

Wheelbase:
90 ½”

Width Across Platforms:
116”

  • Load Sensing Steering
  • 2 Wheel Hydrostatic Drive
  • Rubber Mounted Overhead Guard
  • 4 Wheel Steering
  • Tilting Chassis +/- ½” at front
