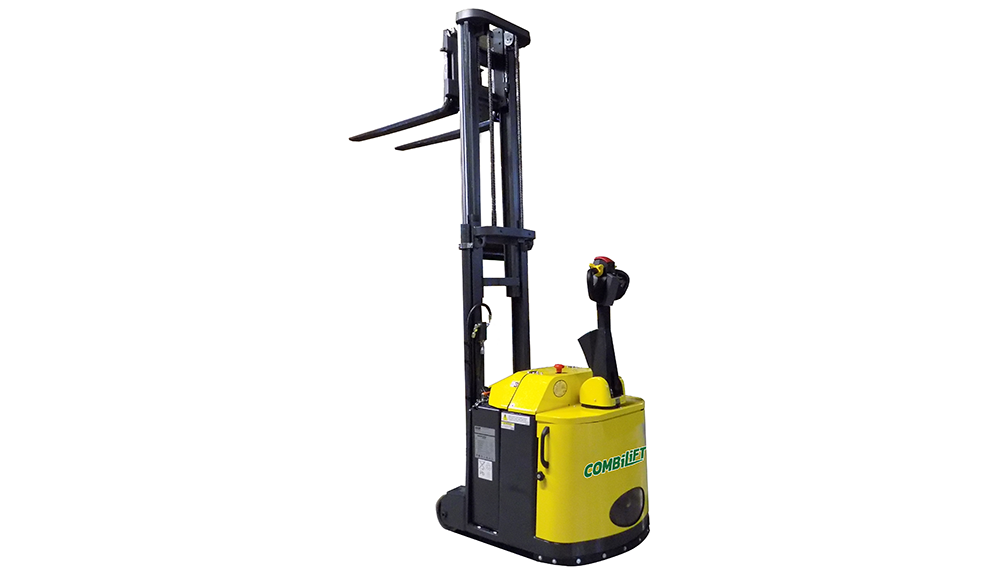

Combilift COMBI-CS Counterbalance Stacker Combilift Equipment Inventory

Details

Equipped with our patented multi-position tiller arm the Combi-CS offers safer operation, maximum operator visibility and narrow aisle performance.

Equipment Type
Forklifts / Pallet Stackers (lifts)

Max. Lift Height:
98″

Height Mast Closed:
72″

Max. (Mast Raised):
124″

Overall Length:
79″ (85″ & 91″ options available)

Ground Clearance Under Mast:
3″

Ground Clearance to Center of Wheelbase:
2″

Width:
35″

Outside Spread of Fork Arms:
24 ½”

Track Front:
29″

Load Center Distance:
20″

Overhang Front:
40 ¾”

Wheelbase:
31″ (37 & 42 ½” options available)

Overhang Back:
7″

Length From Face of Fork:
41″ (47″ & 53″ options available)

Fork Backward Tilt:

Fork Forward Tilt:

Minimum Outside Radius:
38″ (44″ & 50″ options available)

Capacity:
2,200 lbs (2,750 lbs & 3,300 lbs options available)

Unladen Weight:
5,060 lbs (5,170 lbs and 5,280 lbs options available)

Maximum Ground Speed:
4 mph

Gradability:
5%

Battery Capacity:
24 V / 330 Ah

Fork Section:
1 ½” x 4″ x 37 ½”

Front Tire (Polyurethane):
OD 6″ / Width 2″

Rear Tire (Vulkollan):
OD 10″ / Width 3″

Standard Color:
Yellow & Grey

AC Electric Traction Motor:
24 V / 3.35 HP

AC Electric Pump Motor:
24 V / 6.7 HP

  • Power Steering
  • AC Motor Technology
  • Rear Wheel Drive
  • Patented Multi-Position Tiller Arm
