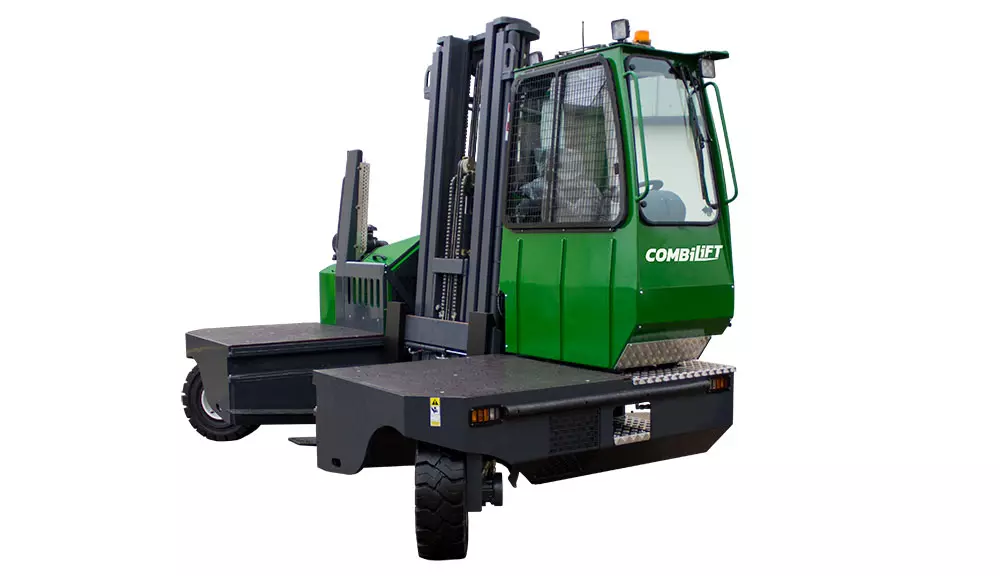

Combilift SL12000 Multi-Directional Sideloader Forklift

Details

The Combilift SL12000 3 wheel sideloader forklift designed for the safe, space saving and productive handling of long and bulky loads.

Equipment Type
Forklifts / Very Narrow Aisle Trucks

27 x 10 – 12 Front Tire:
OD 27” / Width 10”

355 / 65 – 15 Rear Tire:
OD 31” / Width 11½”

Approach Angle:
45°

Backward Tilt:

Capacity:
12,000 lbs

Departure Angle:
45°

Deutz TCD 3.6 ltr / 4.3 ltr GM LPG:
74 HP / 96 HP

Electrics:
12 Volt

Fork Section :
2” x 8” x 55”

Forward Tilt:

Frame Opening:
55”

Free Lift Height:
0”

Gradeability:
15%

Ground Clearance to Center of Wheelbase:
13”

Ground Clearance Under Mast:
12”

Height Mast Closed:
118”

Height Over Cab (Without work lights):
105”

Length From Face of Fork:
33 ½”

Load Center Distance:
23 ½”

Mast Travel:
59”

Max. (Mast raised):
204 ¾”

Maximum Ground Speed:
12 mph

Minimum Outisde Radius:
102”

Outside Spread of Fork Arms:
53”

Overall Length:
88 ½”

Overhang Back:
12 ½”

Overhang Front:
12 ½”

Platform Height (Optional 750mm):
33 ½”

Platform Length:
55”

Ramp Angle:
18°

Standard Color:
Green & Gray

Standard Lift Height:
159”

Suspension Seat:
KAB Model 116

Track Front:
128 ¼”

Unladen Weight:
22,490 lbs

Wheelbase:
128 ¼”

Width:
153 ½”

  • Hydrolic Oil Cooler
  • 4-way lever positioning of Wheels
  • Load sensing steering
  • Rubber Mounted Cabin
  • Multi-Directional Operation
  • 3 Wheel Hydrostatic Drive
