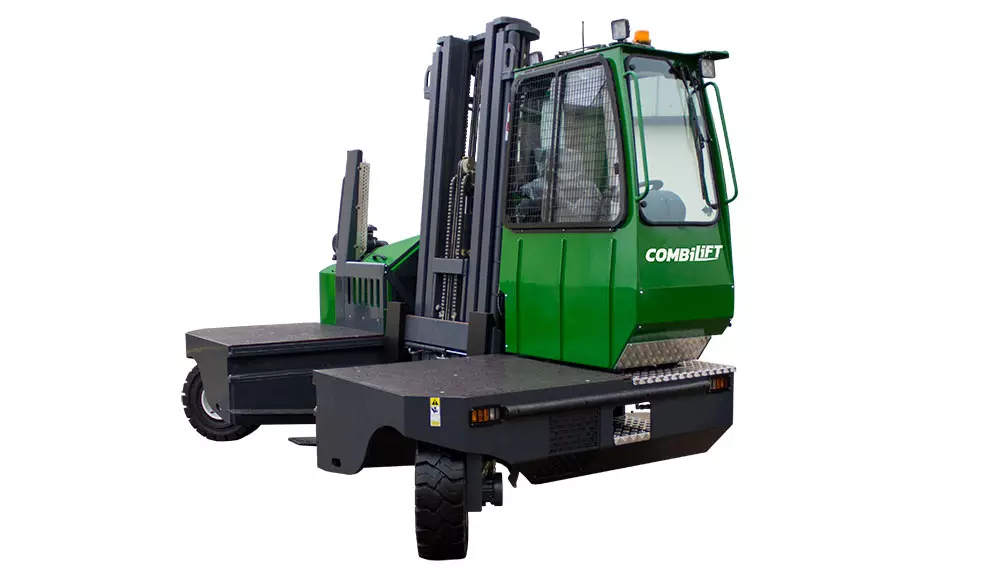

Combilift 10,000SL Sideloader Forklift Combilift

Details

The 3 wheel sideloader forklift designed for the safe, space saving and productive handling of long and bulky loads

Equipment Type
Forklifts / Narrow Aisle

  • 27 x 10 – 12 Front Tire:
    OD 27” / Width 10”

  • 355 / 65 – 15 Rear Tire:
    OD 31” / Width 11½”

  • Approach Angle:
    45°

  • Backward Tilt:
    5°

  • Capacity:
    10,000 lbs

  • Departure Angle:
    45°

  • Deutz TCD 3.6 ltr / 4.3 ltr GM LPG:
    74 HP / 96 HP

  • Electrics:
    12 Volt

  • Fork Section :
    2” x 8” x 47”

  • Forward Tilt:
    3°

  • Frame Opening:
    55”

  • Free Lift Height:
    0”

  • Gradeability:
    15%

  • Ground Clearance to Center of Wheelbase:
    13”

  • Ground Clearance Under Mast:
    12”

  • Height Mast Closed:
    118”

  • Height Over Cab (Without work lights):
    105”

  • Length From Face of Fork:
    33 ½”

  • Load Center Distance:
    23 ½”

  • Mast Travel:
    51”

  • Max. (Mast raised):
    204 ¾”

  • Maximum Ground Speed:
    12 mph

  • Minimum Outisde Radius:
    102”

  • Outside Spread of Fork Arms:
    53”

  • Overall Length:
    80 ¾”

  • Overhang Back:
    12 ½”

  • Overhang Front:
    12 ½”

  • Platform Height (Optional 750mm):
    33 ½”

  • Platform Length:
    47”

  • Ramp Angle:
    18°

  • Standard Color:
    Green & Gray

  • Standard Lift Height:
    159”

  • Suspension Seat:
    KAB Model 116

  • Track Front:
    128 ¼”

  • Unladen Weight:
    21,825 lbs

  • Wheelbase:
    128 ¼”

  • Width:
    153 ½”

  • 3 Wheel Hydrostatic Drive
  • Load sensing steering
  • 4-way lever positioning of Wheels
  • Rubber Mounted Cabin
  • Hydrolic Oil Cooler
  • Multi-Directional Operation
