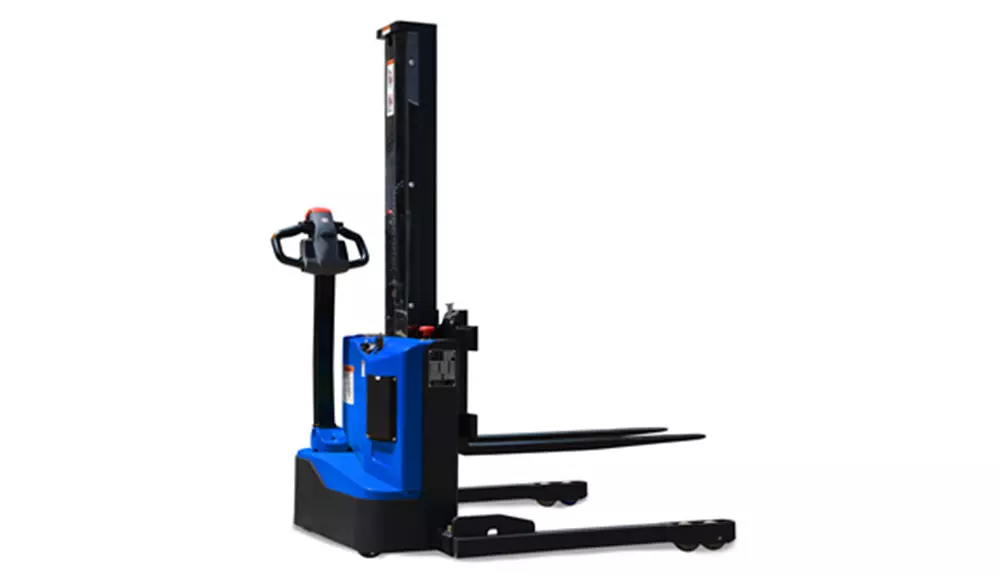

Blue Giant EPS-22 Powered Walkie Stacker

Details

The EPS-22 Powered Walkie Stacker is designed to support general material handling, complicated work positioning, and economical yet efficient operations.

Equipment Type
Forklifts / Pallet Stackers

Capacity:
2,200 lbs (998 kg)

Lift Height:
116″ (63″, 96″ options available)

Lowered Fork Height:
2″

Height, mast lowered:
101″ (2,565 mm)

Height, mast extended:
153.5″ (3,899 mm)

Turning Radius:
52.5″

PERFORMANCE

  • 24V DC permanent magnet drive motor delivers steady acceleration and travel speeds
  • Curtis® Transistor Travel Controller supports simple and precise truck positioning
  • Electronic neutral braking function provides smooth and safe travel control
  • Creep speed control allows for easier maneuvering at low speeds in tight places
  • Travel speed: 3.41mph (unloaded) and 2.5mph (under load)
  • Battery discharge indicator (BDI) monitors performance

ERGONOMICS

  • Ergonomic fingertip control handle has a wrap-around hand guard, thumb control travel function, and easily accessed lift and lower buttons for strain-free operations
  • Hand grips fit the operator’s hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

  • 24″ (610 mm) load center
  • Fork size: 29.5″ x 42″ (749 mm x 1,067 mm) standard
  • Integral 24V 60 AH rechargeable batteries and direct-connect 110A 110VAC charger
  • EPS-22-62 non-telescoping mono mast with single lifting chain and mast rollers provide smooth lift / lower operation
  • EPS-22-96/116 has telescoping high visibility mast and inner rail, clear view Plexiglas mast guard, dual lifting chains, adjustable mast rollers
  • High-strength service cover protects internal components from impact damage
