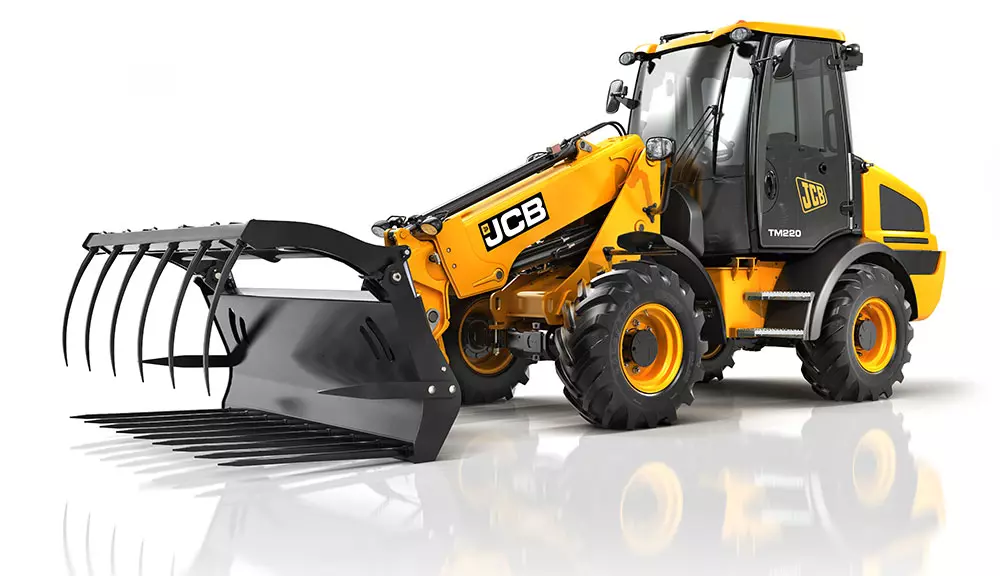

JCB TM220 Articulated Telescopic Handler

Details

The TM220 is a highly productive articulated telescopic handler with compact dimensions, performance, versatility and JCB’s iconic telescopic boom for great lift height. It’s fitted with a 74hp engine that produces 300 Nm of torque, powering a 2-speed hydrostatic transmission with a max. lift height of 15ft.

This loading shovel also features superior quality components, comfort and ergonomics aplenty, excellent build quality, stringent safety levels and straightforward serviceability.

In short, it’s a perfect high-lifting tool carrier for farms.

Equipment Type
Construction & Ag / Telehandler/Articulated Telescopic

Engine

Type:
4 stroke, Electronic Common Rail

Model:
JCB Diesel by Kohler KDI 2504 TCR

Capacity:
2.482 liters

Aspiration:
Turbocharged

Cylinders:
4

Max gross power to SAE J1995/ISO 14396:
74 hp (55 kW) @ 2200rpm

Max torque:
300 Nm @ 1500rpm

Emissions:
Tier 4 FINAL



Transmission

Type:
Hydrostatic

Model:
Rexroth A6VM – 2 speed

Model (40kph options):
Rexroth A6VM – 3 speed

Low range:
3.75 mph (6 kph)

High range:
12.5 mph (20 kph)

High speed (optional):
25 mph (40 kph)



Axles

Type:
Straight beam

Make and model:
Dana 111



Dimensions

Overall length:
19′ 8″ (5,998 mm)

Axle to pivot pin:
4′ 2″ (1,269 mm)

Wheelbase:
7′ 3″ (2,205 mm)

Axle to counterweight face:
4′ 3″ (1,295 mm)

Minimum ground clearance:
1′ 1″ (330 mm)

Width over cab:
4′ 10″ (1,468 mm)

Width over tires:
6′ 3″ (1,902 mm)

Wheel track:
4′ 11″ (1,490 mm)

Height over cab:
8′ 8″ (2,634 mm)

Front axle weight:
5,803 lbs (2,632 kg)

Rear axle weight:
8,516 lbs (3,863 kg)

Total weight:
14,319 lbs (6,495 kg)

Inside turn radius:
6′ 10″ (2,090 mm)

Maximum turn radius over shovel:
15′ 7″ (4,755 mm)

Maximum turn radius over tire:
13′ 3″ (4,030 mm)

Articulation angle:
±40°

  • Large single piece hood ensures quick and convenient access to engine bay and cooling pack areas
  • Has a cyclonic pre-filter which maximizes air filtration and extends filter element service intervals significantly
  • Stylish, modern central dash display that can show machine health details, service requirements, operating information, and more.
  • New ergonomically designed joystick control system for comfortable and intuitive operation
  • Comfortable, spacious cab
  • All-round visibility
