JCB 300 Skid Steer Loader JCB Equipment Inventory

Details

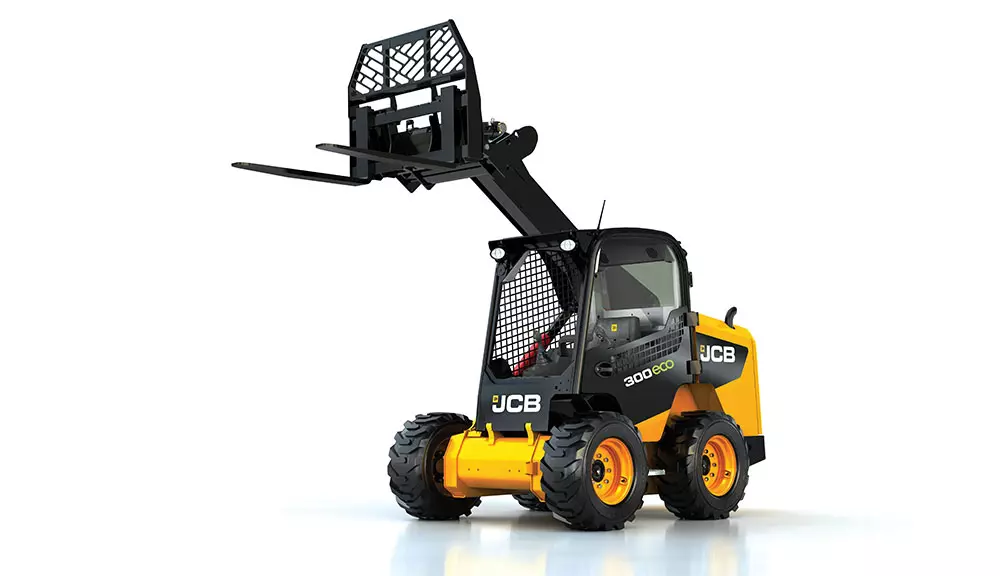

The large-platform, Hi-Viz, JCB 300 skid steer loader provides the operator with excellent visibility to the attachment. With a rated operating capacity of 3,186 lb, this vertical lift machine is ideal for applications that require heavy, high-flow attachments for clearing material, mulching and agricultural tasks.

Equipment Type
Construction & Ag / Skid Steers

Rated Operating Capacity:
3,186 lb (1,455 kg)

Operating Weight:
9,288 lbs (4,213 kg)

Net Engine Power:
74 hp (55 kW)

Overall Length:
12 ft 6 in (3.8m)

Overall Height:
6 ft 11 in (2.1 m)

Dump Height:
7 ft 6 in (2.3 m)

Ground Clearance:
10 in (250 mm)

  • Iconic JCB Powerboom loader arm with lower profile for improved visibility and tapered pins for superior rigidity
  • Side-door entry for superior safety
  • Efficient 74 hp JCB EcoMAX T4F engine that requires no exhaust after-treatment
  • 24 gpm standard hydraulic circuit; optional 31.7 gpm auxiliary high-flow circuit
  • 60% better visibility and up to 33% larger cab than competitors
  • Industry-leading ergonomics
  • Tilting cab for easy servicing and reduced downtime
  • The new centralized tilt cylinder gives better breakout force and improved visibility to the attachment
