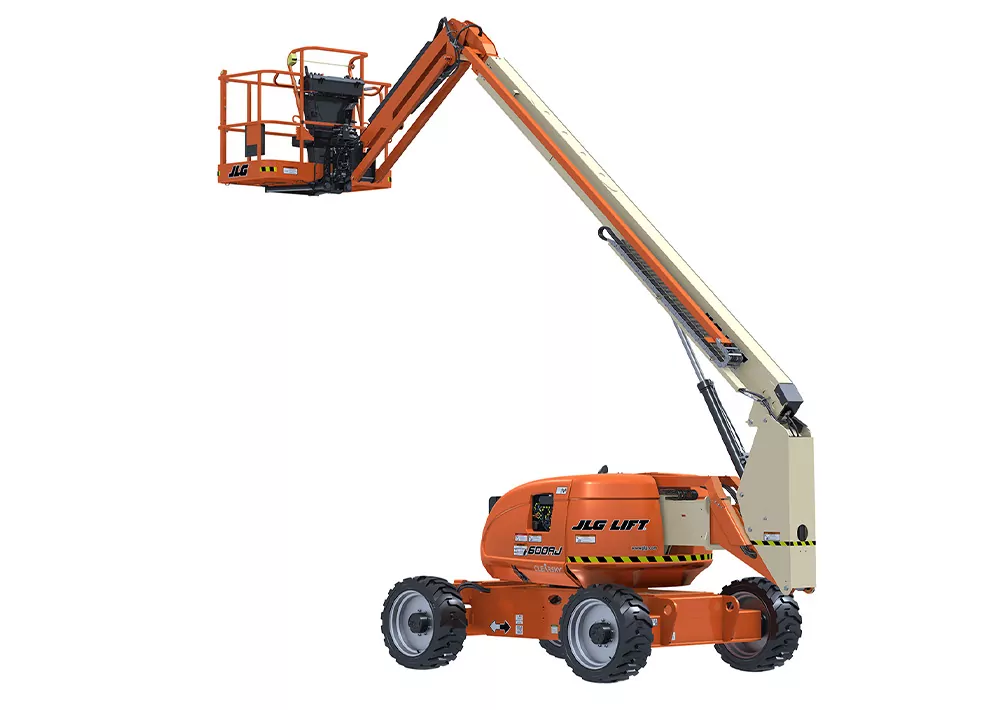

JLG 600AJ Boom Lift
Details
On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. The larger work envelope on an articulating lift provides you with access to those hard-to-reach places.
The 600 Series features a narrow chassis option for access to confined areas and the industry’s best work envelope. A standard oscillating axle and optional four-wheel drive give you outstanding drive performance on rough terrain. Jib-equipped models add 70 degrees of upward and 60 degrees of downward motion to get you into those hard-to-reach places. Plus, our Hi-Capacity model allows you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools.
Key Specs
- Platform Height: 60 ft 7 in. / 18.47 m
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 39 ft 9 in. / 12.12 m
Key Features
- Best reach envelope in its class
- Optional articulating jib gets you into hard-to-reach places
- Unmatched maneuverability for confined work areas
- Equipped with a fuel-efficient Tier 4 engine
- Model shown features optional SkySense® Enhanced Detection System
- Equipment Type
- Aerial Lifts / Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
30 gal. / 113.56 L
Engine Type – Diesel:
DEUTZ D 2.9L Tier 4 Final 49 hp
Engine Type – Dual Fuel:
Ford MSG425 84hp
Axle Oscillation:
8 in. / 0.2 m
Drive Speed – 2WD:
4.3 mph / 6.84 km/h
Drive Speed – 4WD:
4.3 mph / 6.84 km/h
Grade-ability – 2WD:
30 %
Grade-ability – 4WD:
45 %
Platform Capacity – Unrestricted:
500 lb / 226.80 kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside(2WS):
17 ft 7 in. / 5.36 m
Turning Radius – Outside (4WS):
11 ft 8 in. / 3.56 m
Jib – Range of Articulation:
130 Degrees
Ground Clearance:
1 ft / 0.29 m
Horizontal Jib Rotation:
0 Degrees
Horizontal Outreach:
39 ft 9 in. / 12.12 m
Platform Height:
60 ft 7 in. / 18.47 m
Up and Over Height:
26 ft 7 in. / 8.1 m
Machine Weight:
22691 lb / 10292.46 kg
- Best reach envelope in its class
- Optional articulating jib gets you into hard-to-reach places
- Unmatched maneuverability for confined work areas
- Equipped with a fuel-efficient Tier 4 engine
- Model shown features optional SkySense® Enhanced Detection System
