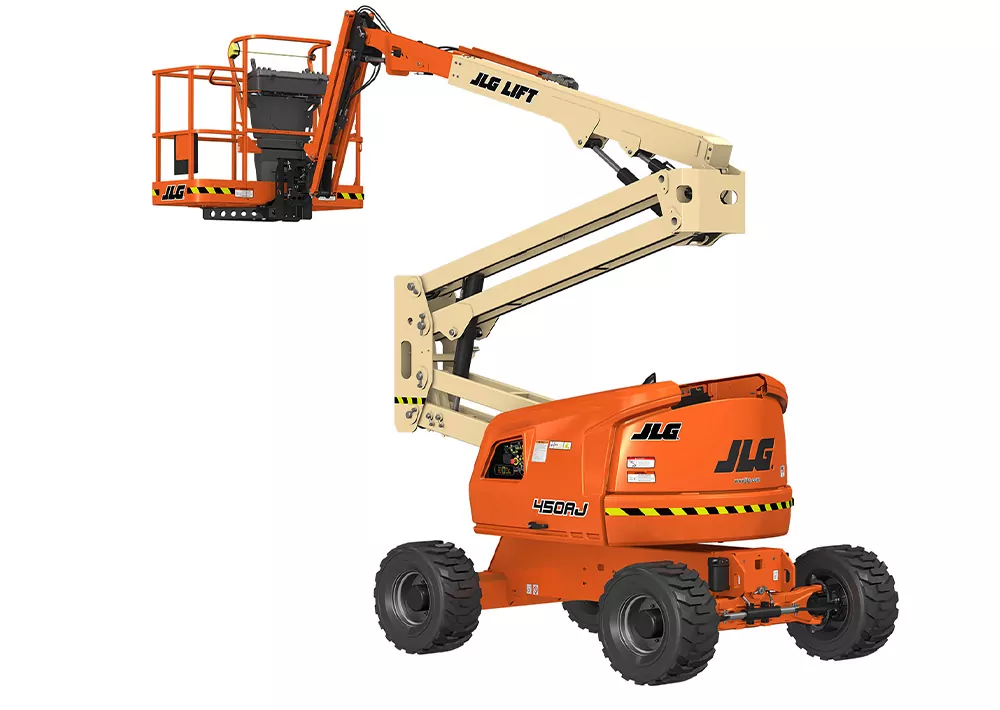

JLG 450AJ Boom Lift
Details
The 450 Series provides the perfect solution for when you’re working around tricky architecture or in smaller spaces where access can be limited. Plus, our Hi-Capacity model allows you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools.
Work around tricky architecture or in tight spaces with 450 Series articulating boom lifts. Standard and Hi-Capacity models are available to help you bring more productivity to the job site.
Key Specs
- Platform Height: 45 ft / 13.72 m
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Horizontal Outreach: 25 ft / 7.62 m
Key Features
- Improved multifunction capability increases productivity
- More durability and serviceability thanks to the new DuraTough hood design
- Larger capacity at 550 lb
- Equipment Type
- Aerial Lifts / Boom Lifts
Auxiliary Power:
12 Volts DC
Capacity – Fuel Tank:
16 gal. / 60.57 L
Engine Type – Diesel:
Deutz D2.9 L4 Tier 4 Final 49 hp
Engine Type – Dual Fuel:
Kubota DF WG2503 61 hp
Axle Oscillation:
4 in. / 0.1 m
Drive Speed – 4WD:
4.3 mph / 6.84 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Unrestricted:
550 lb / 249.48 kg
Swing:
355 Degrees
Swing Type:
Non-Continuous
Turning Radius – Outside:
15 ft 8 in. / 4.78 m
Jib – Range of Articulation:
144 Degrees
Ground Clearance:
1 ft. / 0.3 m
Horizontal Outreach:
25 ft / 7.62 m
Platform Height:
45 ft / 13.72 m
Up and Over Height:
20 ft 8 in / 13.72 m
Machine Weight:
14150 lb / 6418.33 kg
- Improved multifunction capability increases productivity
- More durability and serviceability thanks to the new DuraTough hood design
- Larger capacity at 550 lb
Details
The 450 Series provides the perfect solution for when you’re working around tricky architecture or in smaller spaces where access can be limited. Plus, our Hi-Capacity model allows you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools.
Work around tricky architecture or in tight spaces with 450 Series articulating boom lifts. Standard and Hi-Capacity models are available to help you bring more productivity to the job site.
Key Specs
- Platform Height: 45 ft / 13.72 m
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Horizontal Outreach: 25 ft / 7.62 m
Key Features
- Improved multifunction capability increases productivity
- More durability and serviceability thanks to the new DuraTough hood design
- Larger capacity at 550 lb
- Equipment Type
- Aerial Lifts / Boom Lifts
