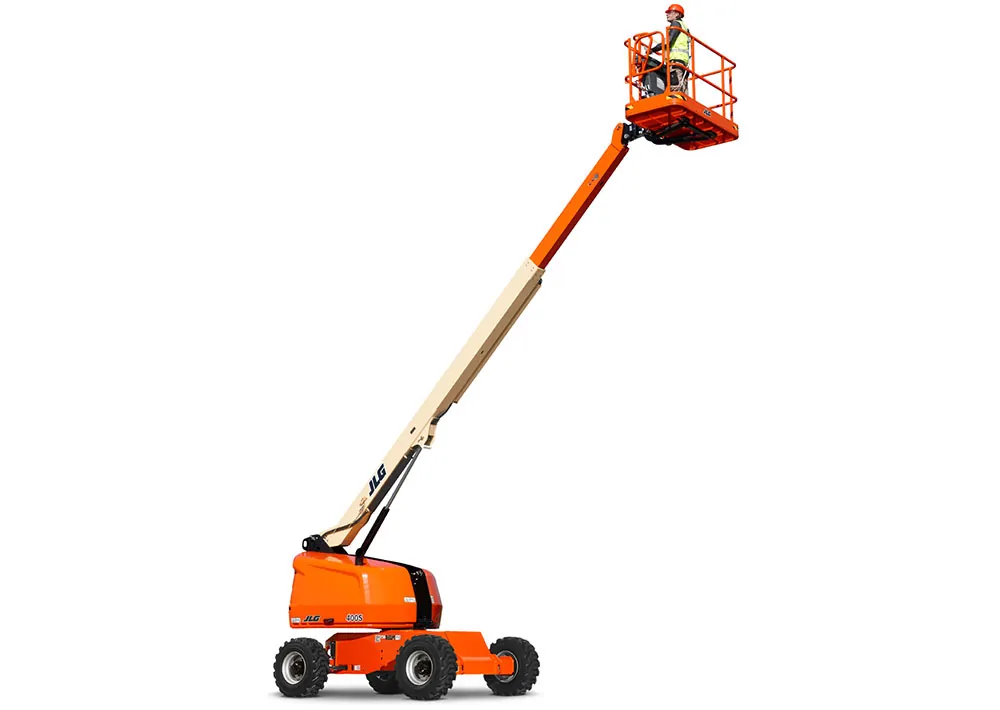

JLG 400S Boom Lift
Details
Experience a productivity boost with JLG 400S telescopic boom lifts. These telescoping lifts offer the fastest lift and drive speeds in their class while delivering more reach. That means you can get to work quickly and efficiently.
A 400S telescopic boom lift from JLG provides greater serviceability access thanks to an engine swing-out tray. These machines also feature our exclusive Control ADE® system, which improves machine maintainability and allows you to customize the function speeds.
Key Specs
- Platform Height: 40 ft / 12.19 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 600 lb / 272.16 kg
- Horizontal Outreach: 33 ft 6 in. / 10.21 m
Key Features
- Best-in-class gradeability and reach
- Fastest lift and drive speeds for unmatched productivity
- Low cost of ownership
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
- Equipment Type
- Aerial Lifts / Boom Lifts
Capacity – Fuel Tank:
22 gal. / 83.28 L
Engine Type – Diesel:
Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW
Engine Type – Dual Fuel:
GM Vortec 3000 MPFI 82 hp 61 kW
Drive Speed – 4WD:
4.5 mph / 7.24 km/h
Grade-ability – 4WD:
45 %
Platform Capacity – Restricted:
1000 lb / 453.59 kg
Platform Capacity – Unrestricted:
600 lb / 272.16 kg
Swing:
360 Degrees
Swing Type:
Continuous
Turning Radius – Outside:
15 ft 8 in. / 4.78 m
Turning Radius – Inside:
6 ft 5 in. / 1.96 m
Machine Height:
8 ft 1 in. / 2.47 m
Machine Length:
24 ft 10 in. / 7.57 m
Transport Length:
24 ft 10 in. / 7.57 m
Machine Width:
7 ft 7 in. / 2.31 m
Platform Dimension A:
3 ft / 0.91 m
Platform Dimension B:
8 ft / 2.44 m
Horizontal Outreach:
33 ft 6 in. / 10.21 m
Platform Height:
40 ft / 12.19 m
Machine Weight:
14520 lb / 6586.16 kg
- Utilizes the best-in-class grade-ability and reach
- Fastest lift and drive speeds for unmatched productivity
- Provides a lower cost of ownership
- Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
