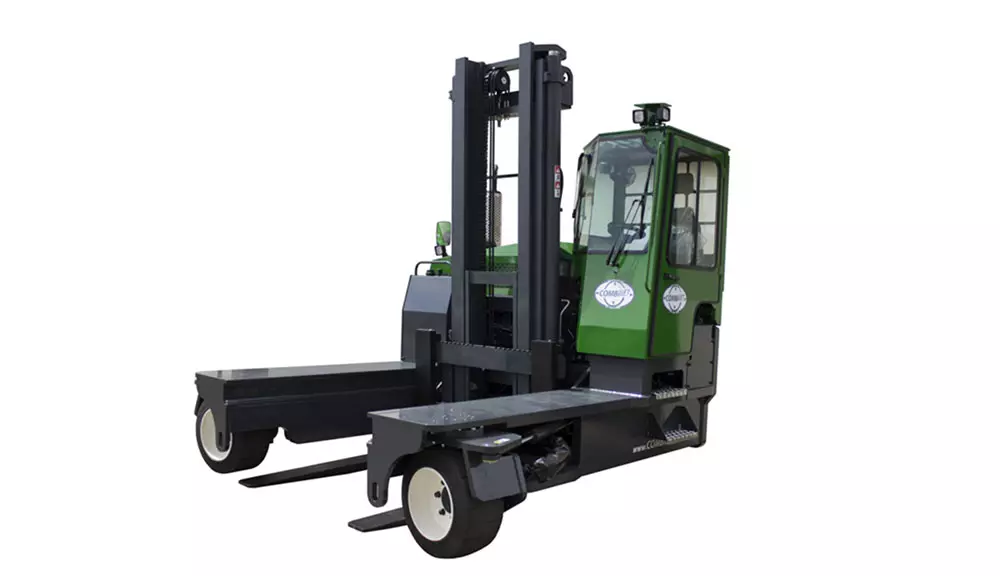

Combilift C26,000 Forklift Combilift

Details

The multi-directional forklift designed for the safe, space saving and productive handling of long and bulky loads.

Equipment Type
Forklifts / Internal Combustion Engine Trucks

  • 400 x 65 – 15 Front Tire :
    OD 32½” / Width 12¾”

  • 465 / 55 – 20 Rear Tire :
    OD 40” / Width 18”

  • Approach Angle :
    45°

  • Backward Tilt:
    8°

  • Capacity:
    26,000 lbs

  • Departure Angle :
    45°

  • Electrics:
    12 Volt

  • Fork Section:
    2½” x 10” x 58¾”

  • Forward Tilt :
    4°

  • Frame Opening :
    83”

  • Free Lift Height :
    0”

  • Gradeability:
    15%

  • Ground Clearance to Center of Wheelbase:
    13”

  • Ground Clearance Under Mast:
    12”

  • Height Mast Closed :
    136”

  • Height Over Cab (Without worklights):
    116¼”

  • Kobuto V3800 – TE Diesel/4.3 ltr GM LPG:
    99 HP/ 96 HP

  • Length from Face of Fork:
    61”

  • Load Center Distance :
    24”

  • Mast travel :
    65”

  • Max. Lift Height:
    161½”

  • Max. Mast Raised :
    228¼”

  • Maximum Ground Speed :
    12 mph

  • Minimum Outside Radius :
    122¾”

  • Outside Spread of Fork Arms :
    78¾”

  • Overall Length:
    119½”

  • Overhang Back:
    7¼”

  • Overhang Front:
    12¼”

  • Platform Height:
    38½”

  • Platform Length :
    58¾”

  • Ramp Angle :
    29°

  • Standard Color:
    Green & Gray

  • Suspension Seat:
    KAB Model 116

  • Track Front:
    116”

  • Unladen Weight:
    33,000 lbs

  • Wheelbase:
    100”

  • Width:
    128½”

  • 3 Wheel Hydrostatic Drive
  • Load Sensing Steering
  • Multi-Direction Operation
  • Hydraulic Oil Cooler
  • 4 Way Lever Positioning of Wheels
  • Rubber Mounted Half Open Cabin
