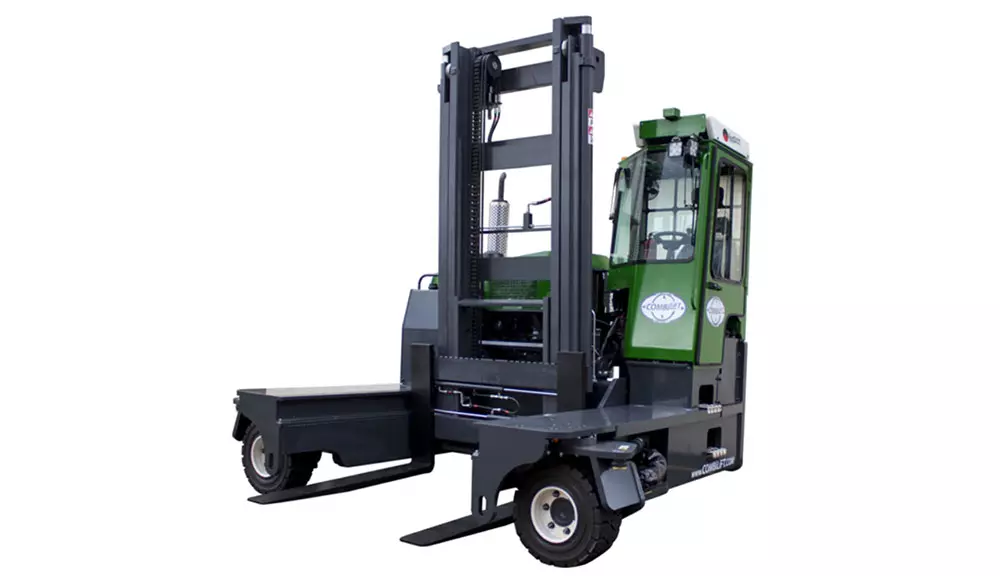

Combilift C17,300 Forklift Combilift

Details

The multi-directional forklift designed for the safe, space saving and productive handling of long and bulky loads.

Equipment Type
Forklifts / Internal Combustion Engine Trucks

  • 23 x 10 – 12 Front Tire:
    OD 23” / Width 10”

  • 4.3ltr GM LPG:
    96HP

  • 400 / 60 – 15 Rear Tire:
    OD 32” / Width 13”

  • Approach Angle:
    45°

  • Backward Tilt:
    5°

  • Capacity:
    17,300 lbs

  • Departure Angle:
    45°

  • Electrics:
    12 Volt

  • Fork Sections :
    2” x 8” x 58½”

  • Forward Tilt:
    3°

  • Frame Opening:
    65”

  • Free Lift Height:
    0”

  • Gradeability:
    15%

  • Ground Clearance to Wheelbase Center:
    6”

  • Ground Clearance Under Mast:
    11”

  • Height Mast Closed:
    135”

  • Height Over Cab or of Overhead Guard:
    102”

  • Length from Face of Fork:
    46½”

  • Load Center Distance:
    24”

  • Mast Travel:
    60”

  • Max. (Mast Raised):
    234”

  • Maximum Ground Speed:
    9 mph

  • Minimum Outside Radius:
    109”

  • Outside Spread of Fork Arms:
    63”

  • Overall Length:
    105”

  • Overhang Back:
    8”

  • Overhang Front:
    12”

  • Platform Height:
    29½”

  • Platform Length:
    58½”

  • Ramp Angle:
    29°

  • Standard Color:
    Green and Gray

  • Standard Lift Height:
    178”

  • Suspension Seat:
    KAB Model 116

  • Track Front:
    98”

  • Unladen Weight:
    24,000 lbs

  • Wheel Base:
    85”

  • Width:
    110”

  • Rubber Mounted Half Open Cabin
  • Load Sensing Steering
  • Multi-Direction Operation
  • 4 Way Lever Positioning of Wheels
  • 3 Wheel Hydrostatic Drive
  • Hydraulic Oil Cooler
