Details

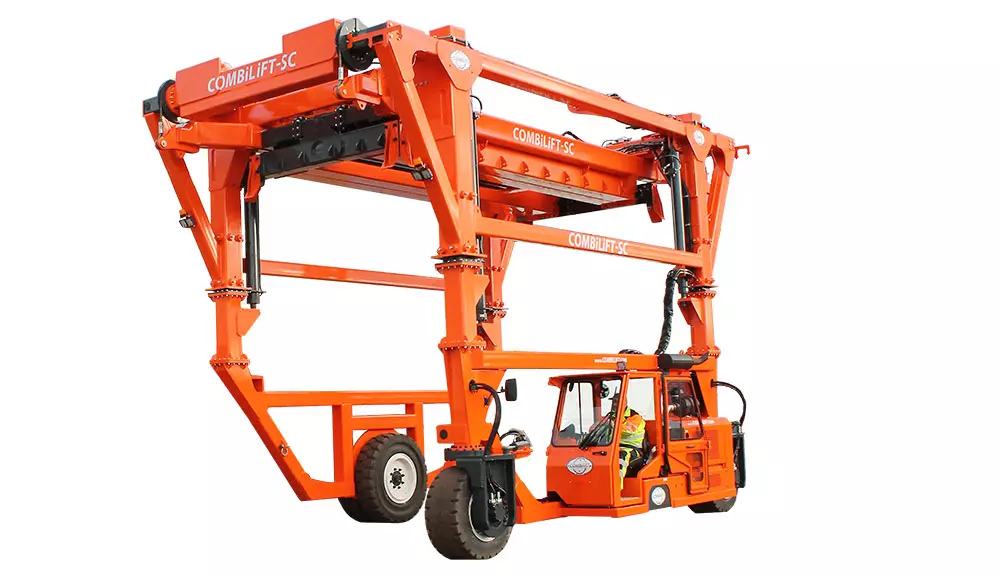

Low volume, standard chain, straddle carriers, primarily for the loading and unloading from trailer to ground of containers and various loads
- Equipment Type
- Container Handlers / Forklifts
Overall Length:
338″
Overall Width:
194″
Overall Height:
203″
Ground Clearance Under Cab:
11″
Height Over Cab:
91″
Track Front:
148″
Wheelbase:
227″
Width Load Area:
118″
Height Load Area:
181″
Turning Radius:
285″
Capacity:
20,000 kg – 100,000kg
Unladen Weight:
37,370 lbs.
Gradeability:
5% fully loaded
Maximum Ground Speed:
6 mph
John Deere 4045 Diesel:
125 HP
Electrics:
12 V
Tires:
4 x Super Elastic Soft Solid Tires
Standard Color:
Yellow & Gray
Suspension Seat:
KAB Model 116
Remote Control:
Optional
- Highly Customizable
- Low ground pressure when fully loaded
- Easy to service
- Reduced fuel/energy consumption
- Rough Terrain & Ramp friendly – Works on compacted stone, bitumen and light concrete
- Exceptional 3-wheel maneuverability
- No brake maintenance
- Ergonomically designed /driver friendly cab
- Travels in/out of warehouse with ease
- Same Unit can lift 20’, 30’, 40’, 45’ Containers
- Side Shift Front & Rear
- 360 degree vision when load is lifted
- Soft Solid puncture proof tires
