Details
OUTSTANDING PERFORMANCE. GREAT VALUE.

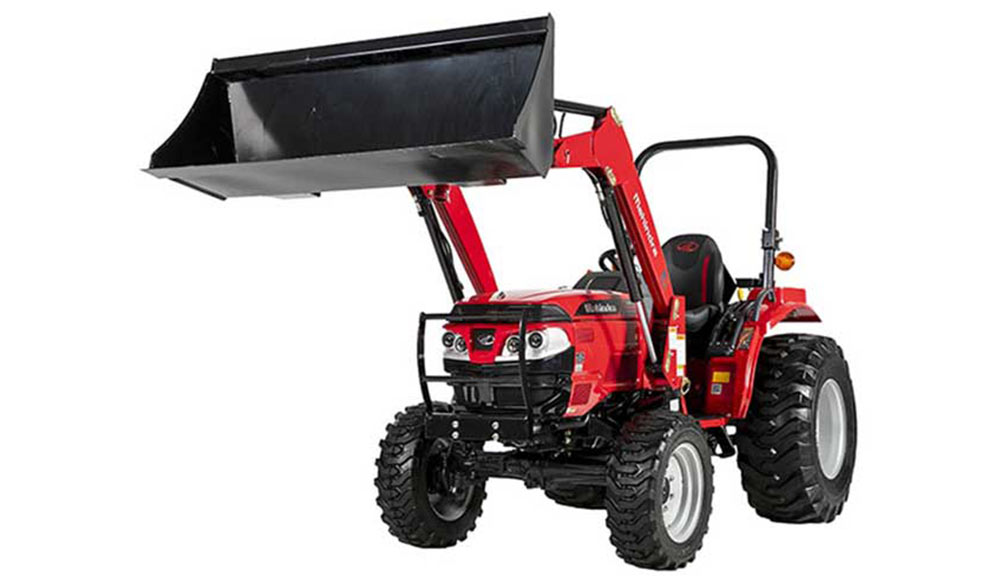

1600 series tractors give you the best of both worlds. Optimal for light- to medium-application labor, these premium compact utility vehicles offer both a small footprint and a competitive lift capacity, along with deluxe features designed to keep you comfortable.
- Equipment Type
- Construction & Ag / Tractors
3- Point Hitch Lift Capacity [lb (kg)]:
2646 (1200)
AG [Front/Rear]:
7 x 16 / 11.2 x 24
Alternator:
12 V, 50 A
Battery:
12 V, 540 CCA
Brakes:
Wet Disc
Clutch:
Dry-Single
Engine HP [kW] @ RPM:
25.9 (19.1) @ 2500
Engine Type:
Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
Fuel Tank [gal (L)]:
7.1 (27)
Hydraulic Type:
Open Center
Implement Pump Output [gpm (L/min)]:
7.5 (28.5)
IND [Front/Rear]:
27 x 8.5-15 / 15 x 19.5
Maximum Total Flow [gpm (L/min)]:
10.8 (40.7)
Mid PTO RPM:
2000 (Opt.) @ 2526
Minimum Ground Clearance [in (mm)]:
11.4 (289)
Number of Cylinders:
3
Number of Speeds:
Infinite
Overall Height [in (mm)]:
81.5 (2070)
Overall Length [in (mm)]:
121.3 (3081)
Overall Width [in (mm)]:
63 (1600)
PTO HP (kW):
19 (14.2)
PTO Type:
Live
Rear PTO RPM:
540 @ 2376
Transmission:
HST -3 Ranges
TURF [Front/Rear]:
25 x 8.5-14 / 13.6 x 16
Turning Radius [ft (m)]:
7.9 (2.4)
Weight [lb (kg)]:
2459 (1115)
Wheelbase [in (mm)]:
67.3 (1709)
- Semi-flat operator platform with floor mat
- HVAC
- Easy access to battery, air filter, fuel tank
- mComfort seat with foldable armrests
- Optional mid-mount PTO RPM
- Power steering – tight turning radius
- Reinforced steel fenders and hood
