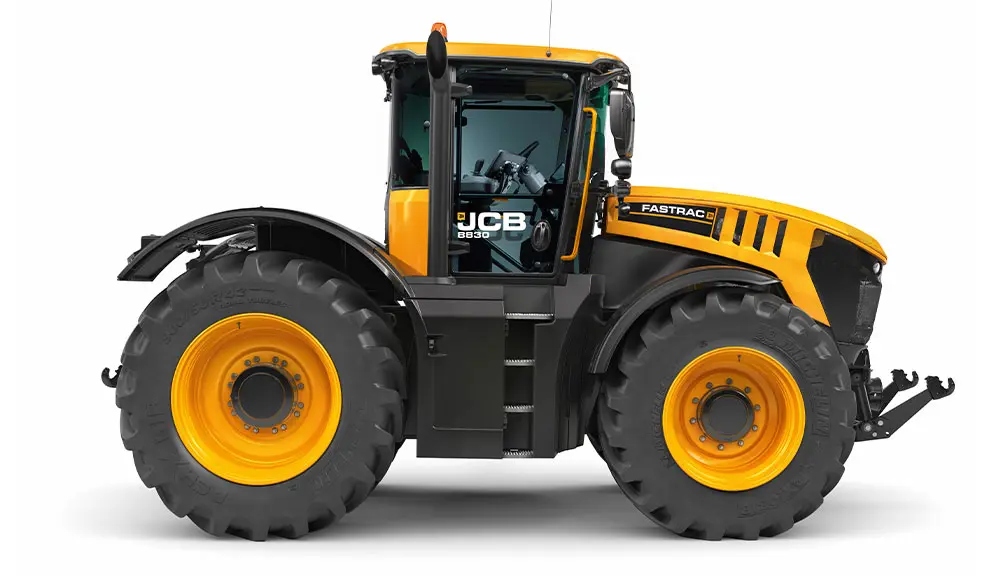

JCB 8330 Fastrac
Details
8000 Series Fastrac iCON
One look tells you the JCB Fastrac 8000 series is different from the rest.
Discover the difference the Fastrac can make to your business with a top speed of 43mph, the best powertrain and suspension combination, hydrostatic dual steering system and anti-lock braking capability, this machine is equipped for a life of hard work.
- Equipment Type
- Construction & Ag / Tractors
Height Over Cab:
11 ft 4 in
Height to Deck:
6 ft 9 in
Wheelbase:
10 ft 3 in
Track Width:
6 ft 8 in
Overall Length:
18 ft 6 in
Overall Width:
8 ft 4 in
Ground Clearance:
2 ft
Width Between Tires:
3 ft 7 in
Engine Type:
AGCO Power
Engine Model:
84 LFVC
Cylinders / Capacity (L):
6 / 8.4
Rated Power hp @ 2100 rpm:
335 hp
Maximum Power hp @ 1900 rpm:
348 hp
Maximum Torque @ 1500 rpm:
1070 lbf
Fuel Tank:
159 gal
Hydraulic Tank:
40 gal
DEF Tank:
18.5 gal
Rear 3 Point Linkage Control:
Electronic raise/lower with depth, draft/position intermix, rate of drop and maximum lift height control plus external lift and lower.
Rear 3 Point Linkage Type:
Category 3; Quick attach hook ends, eye end top link, Cat 4N available.
Rear 3 Point Linkage Capacity:
22,000
Front & Rear Suspension: Hydro-pneumatic Self Leveling:
2.48 in
System Voltage:
12V
Alternator Output:
200 Amp
Standard Steering:
Dual line hydrostatic – fixed ratio
Transmission Type:
AGCO ML260 CVT
Low Range Speed:
0-15 mph
High Range Speed:
0-43 mph
- Unique steering enables a maximum speed of up to 70mph, ideal for every situation.
- The 6 cylinder engine provides a generous supply of power up to 335hp.
- CVT transmission ensures optimum use of power and torque for seamless power delivery.
- Managed by the Smart Transmission control, power delivery has never been so controlled.
- A configurable operator environment and ISOBUS compatibility makes changing between implements even easier.
- Powerful hydraulics meet the demand of complex implements.
- Properly equipped for its top speed of 43mph the Fastrac iCON can quickly move between jobs.
- 50:50 weight distribution optimizes tractive performance in the field, without excess ballast.
- A 22,046lb rear lift capacity and optimized hitch geometry make light work of even the largest implements.
- The full length chassis and mid mounted cab allow additional ballast or implements to be mounted on the rear deck.
- A variety of tire sizes and track width options are available to suit a wide range of applications.
- All round advanced hydropneumatic suspension provides unrivaled comfort and stability.
- Mid-mounted cab position gives additional comfort and excellent 360° visibility.
- Enjoy even greater comfort with a new heated and ventilated seat plus climate control.
- An adjustable screen, seat, armrest and configurable controls provides a customized operator environment.
- All-round disc brakes deliver greater and more consistent stopping power.
- Dual-line steering, twin-caliper brakes and a full-length rigid chassis provide high levels of safety.
- Anti-roll bars and advanced suspension system offer improved stability at high speed.
- Advanced anti-lock breaking system (ABS) retains stability and steering performance.
