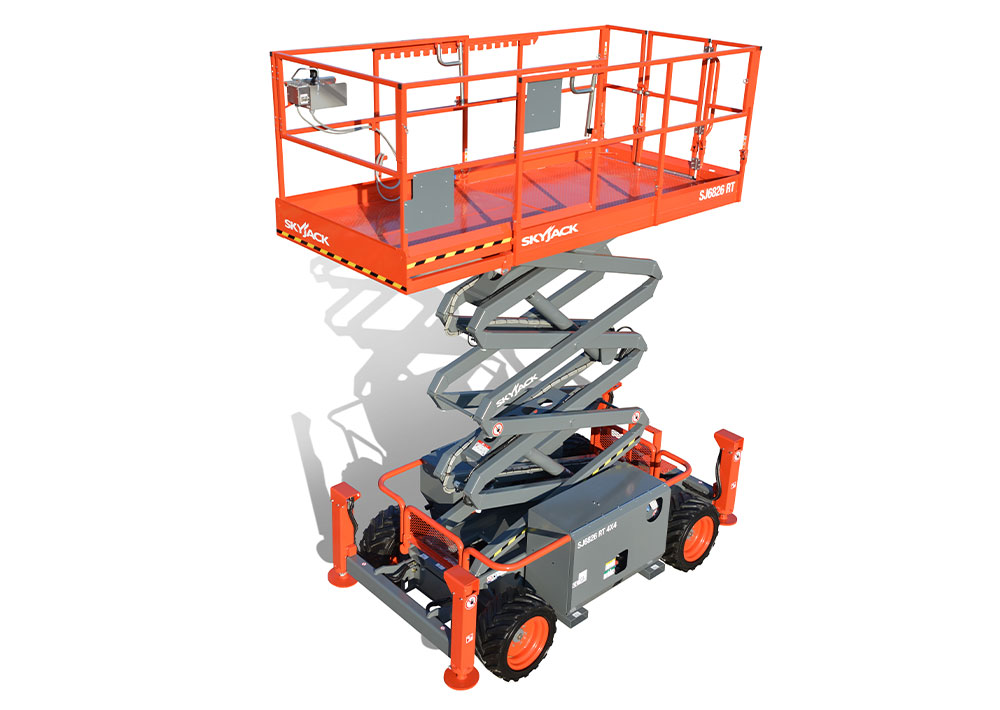

Skyjack SJ9253 RT Scissor Lift

Details

The recently redesigned Skyjack SJ9253 RT full size rough terrain scissor lifts boast some of the largest platforms and capacities on the market. These machines also feature axle-based four-wheel drive, providing them with outstanding all terrain capabilities.

Equipment Type: Aerial Lifts / New Scissor Lifts

Work Height:
59’ (17.98 m)

Raised Platform Height:
53’ (16.15 m)

Lowered Platform Height:
82” (2.08 m)

Overall Width:
90.6” (2.30 m)

Overall Length:
174” (4.42 m)

Weight:
17,736 lbs (8,045 kg)

Lift Time (With Rated Load):
69

Lower Time (With Rated Load):
50

Drive Speed (Stowed):
3.5 mph (5.6 km/h)

Drive Speed (Raised):
0.6 mph (1 km/h)

Maximum Drive Height:
33’ (10.06 m)

Capacity (Overall):
2,000 lbs (907 kg)

Diesel Engine:
Kubota 24.8 HP D1305

Fuel Tank:
13 gal. (49 L)

AXLDRIVE™ Axle-based 4WD system
Operator controlled locking rear differential and limited slip front differential
Up to 40% grade-ability
Wet disc SAHR brakes (rear axle)
SKYCODED™ Color coded and numbered wiring system
On-board visual interface with diagnostic capabilities
Kubota D1305 Tier 4F diesel engine
Auto leveling outriggers
Self-centering scissor design to support optional dual extension decks
Lockable power disconnect switch
Flashing light
Proportional controls
Up to 2,750 lbs (1,247 kg) capacity
Oversized platform with optimal clearance over side of machine
Fold down hinged railing system
Full height entry gates
5’ (1.52 m) Roll-out extension deck
High strength and impact resistant composite control box
Overload sensing system
110V AC Outlet on platform with GFI
Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
Single point emergency lowering
Hourmeter
Operator horn
All motion alarm
Tie down / lifting lugs
Grip lug solid tires
Telematics ready
2-Year Gold Leaf Warranty (5-year structural warranty)
