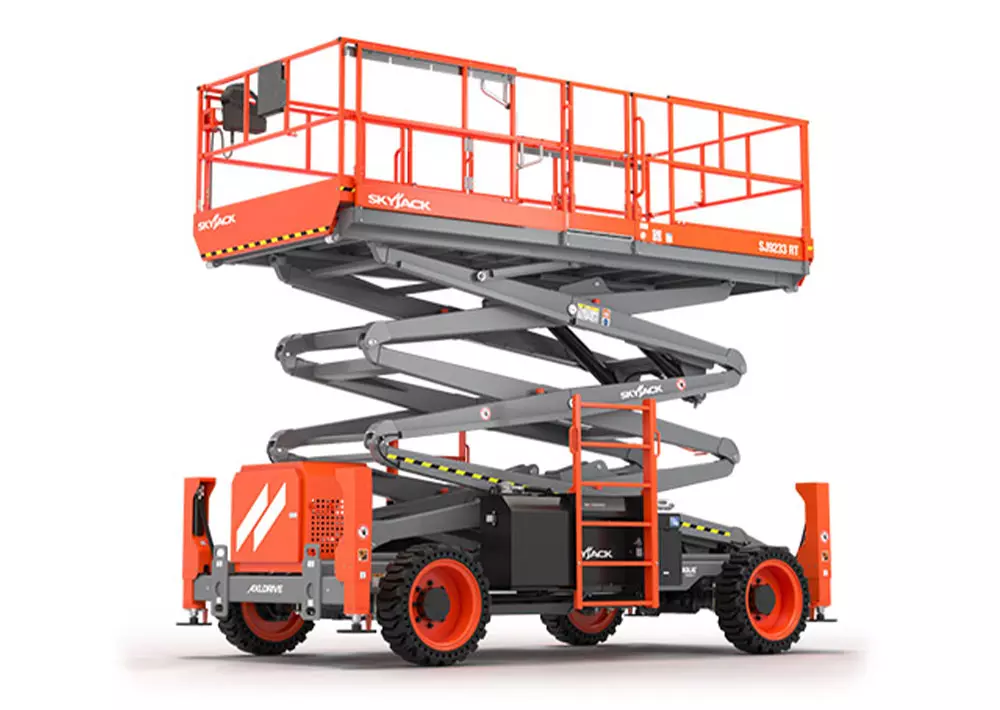

Skyjack SJ9233 RT Scissor Lift
Details
The recently redesigned Skyjack SJ9233 RT full size rough terrain scissor lifts boast some of the largest platforms and capacities on the market. These machines also feature axle-based four-wheel drive, providing them with outstanding all terrain capabilities.
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Work Height:
39’ (11.89 m)
Raised Platform Height:
33’ (10.06 m)
Lowered Platform Height:
64” (1.62 m)
Overall Width:
90.6” (2.30 m)
Overall Length:
174” (4.42 m)
Weight:
13,479 lbs (6,114 kg)
Lift Time (With Rated Load):
35
Lower Time (With Rated Load):
30
Drive Speed (Stowed):
3.5 mph (5.6 km/h)
Drive Speed (Raised):
0.6 mph (1 km/h)
Maximum Drive Height:
Full Height
Capacity (Overall):
2,750 lbs (1,247 kg)
Diesel Engine:
Kubota 24.8 HP D1305
Fuel Tank:
13 gal. (49 L)
- AXLDRIVE™ Axle-based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Drivable at full height
- Up to 40% grade-ability
- Wet disc SAHR brakes (rear axle)
- SKYCODED™ Color coded and numbered wiring system
- On-board visual interface with diagnostic capabilities
- Kubota D1305 Tier 4F diesel engine
- Self-centering scissor design to support optional dual extension decks
- Lockable power disconnect switch
- Flashing light
- Proportional controls
- Up to 2,750 lbs (1,247 kg) capacity
- Oversized platform with optimal clearance over side of machine
- Fold down hinged railing system
- Full height entry gates
- 5’ (1.52 m) Roll-out extension deck
- High strength and impact resistant composite control box
- Overload sensing system
- 110V AC Outlet on platform with GFI
- Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
- Single point emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- Tie down / lifting lugs
- Grip lug solid tires
- Telematics ready
- 2-Year Gold Leaf Warranty (5-year structural warranty)
