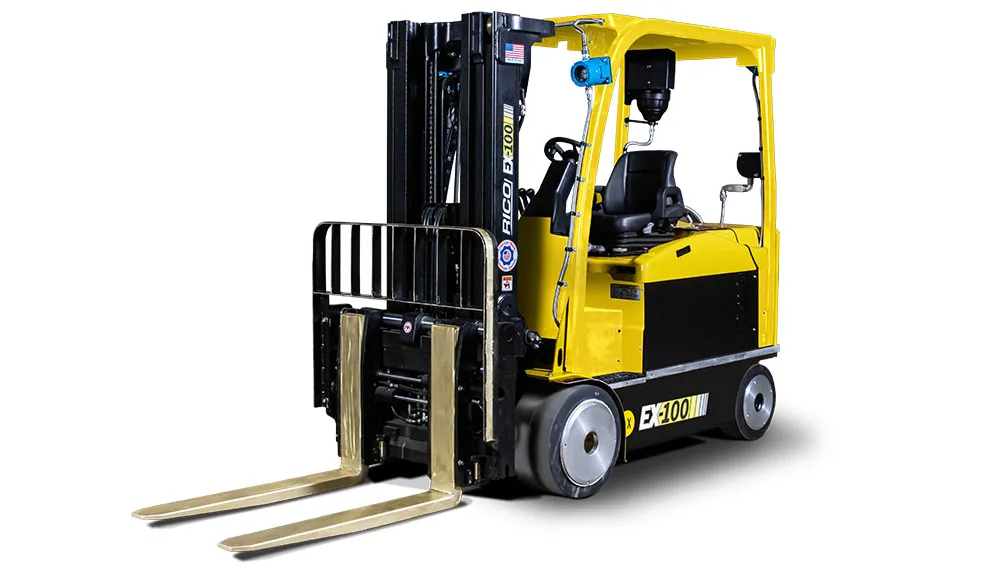

RICO HSD-EX-AC-100 Forklift
Details
The RICO HSD-EX-AC-100 is a heavy-duty explosion-proof sit-down counterbalanced forklift engineered to handle up to 10,000 lbs in hazardous environments. Designed for safety and efficiency, it complies with UL583 specifications and features static conductive steer tires and protected surfaces to reduce sparks. With unmatched visibility, easy access to maintenance components, and the highest EX capacity in the market, this forklift is built for demanding Class 1, Division 1 & 2, and Class 2, Division 1 & 2 applications. Optional LED lighting packages enhance safety and productivity in any setting.
- Equipment Type
- 4 Wheel Electric Forklift Trucks / Forklifts
Capacity:
up to 10,000 lbs
Yale Model:
ERC100VH
Hyster Model:
E100XN
Steering:
Fully fluid linked power steering system
Lift Height:
109 in
Forks (Thickness x Width x Length):
2.25 x 6.13 x 42 in
Load Distance (Center of Wheel to Face of Forks):
24.8 in
Wheelbase:
68.5 in
Volts:
36
Battery Type:
Lead Acid
Step Height:
21.1 in
- Highest EX Capacity in the Market
- Outstanding visibility: Excellent visibility helps increase operator awareness.
- Lighting: Additional packages for LED work lights, blue pedestrian light and LED strobe light are available.
- Ease of Maintenance: Easy access to serviceable components.
- Reduced costs: Battery box eliminates the need for an EX battery.
- Inventory control: Industry standard components for local servicing and dealer sourcing.
- Rigorous Testing: Built to UL583 specifications, and approved by FM Global, a Nationally Recognized Testing Laboratory. (NRTL)
- Static conductive steer tires: Prevent sparks, helping to provide a working environment with reduced peril and hazardous conditions.
- Protected Surfaces: Exposed components on the perimeter of the truck, including forks, are protected with brass and aluminum alloys eliminating the possibility of mechanical sparking.
- Drive, pump and electrical enclosures house only electrical components and are approved to be included on EX-rated lift trucks. All RICO enclosures have been tested for approval in an EX-rated environment by FM Global
- Flexible conduit (FC) cables house regular cabling, which is sealed to ensure safe use in an EX-rated environment. The FC cable provides flexibility and space saving.
