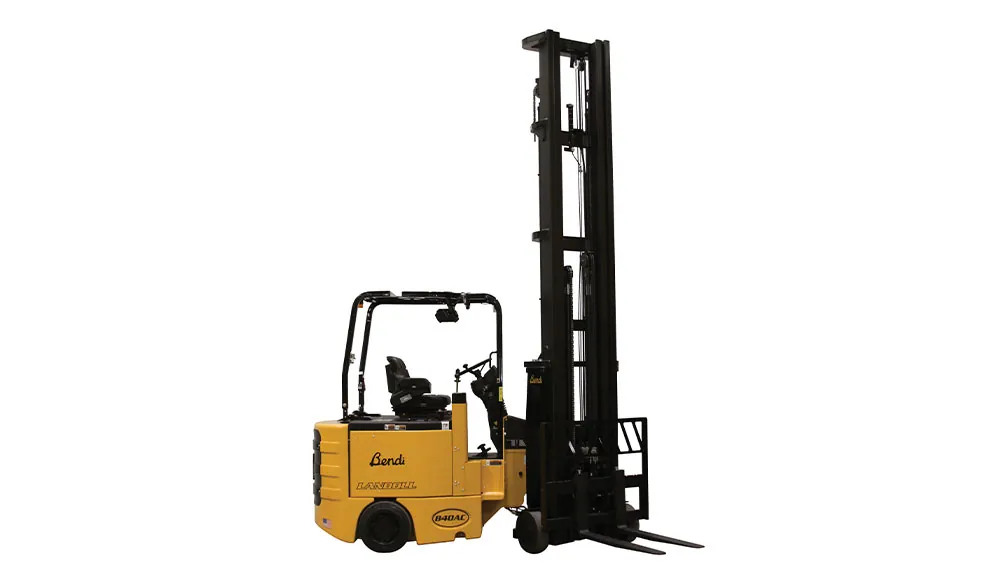

Bendi B40AC-HL / B50AC-HL Forklift
Details
The Bendi model B40AC-HL/B50AC-HL works in aisles as narrow as 78″* (1.98 M), has a basic starting capacity of 4,400 lbs. (1996 kg) at 24″ (600 mm) load center and has lift heights available to 41′ (12.50 M).
The Bendi B40AC-HL/B50AC-HL is a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. The B40AC-HL / B50AC-HL can work inside and outside on paved surfaces and has a floating front axle allowing the truck to ride smoothly over uneven floors. The B40AC-HL/B50AC-HL does all of the jobs of a reach and counterbalanced truck but in much narrower aisles.
Exceptional Performance and Maneuverability
Equipped with the Landoll DuraSteerTM front wheel hydraulic steering, the B40AC-HL/B50AC-HL provides exceptional control and makes load placement and retrieval superior to the competition.
3-Stage Mast
The new mast has a rigid mounting and as standard a tilting and side shifting carriage. The new design offers increased mast rigidity, capacity and improved visibility. Dual free lift cylinders and optimized hose and chain routings have improved visibility thru the mast. Lowered heights have been reduced and a new mounting position on the 42” (1067 mm) wide front axle reduces the distance from the face of the forks to the back of the axle thereby improving aisle performance. Mountings for cameras have been integrated into the inner mast and an optional integral side shifting fork positioner combination is also available.
*Based on 48” (1200 mm) long x 40” (1000 mm) wide load.
- Equipment Type
- 4 Wheel Electric Forklift Trucks / Forklifts
Capacity:
B40AC-HL: 4,000 lbs (1,814 kg)
B50AC-HL: 5,000 lbs (2,268 kg)
Weight With Battery:
B40AC-HL: 16,600 lbs (7,530 kg)
B50AC-HL: 19,340 lbs (8,772 kg)
Travel Speed:
Loaded: 6.5 mph (10.5 kph)
Unloaded: 7 mph (11.3 kph)
Lift Speed:
Loaded: 90 fpm (27.4 mpm)
Unloaded: 110 fpm (33.4 mpm)
Lowering Speed:
Loaded: 100 fpm (30.5 mpm)
Unloaded: 90 fpm (27.4 mpm)
Wheelbase:
B40AC-HL: 73.4 in (1,864 mm)
B50AC-HL: 73 in (1,854 mm)
Chassis Width:
B40AC-HL: 50 in (1,270 mm)
B50AC-HL: 54 in (1,372 mm)
Battery Compartment Height:
19.24 in (489 mm)
Max Lift Height:
492 in (12.50 m)
- 4,400 lb. (1,996 kg) and 5,000 lb. (2,268 kg) Capacity at 24″ (600 mm) Load Center
- Four-Wheel Design, Dual Rear Wheel Drive
- Adjustable Seat and Steering Wheel
- Integral 11.2″ (285 mm) Stroke Sideshifter and 36″ (914 mm) High Load Backrest
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- High Visibility Mast Allows Optimum Safety and Control
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High-Efficiency Curtis AC Controllers Provide Trouble Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
- 48 Volt Electrical System
- Optional Cold Storage Conditioned to -22°F (-30°C)
