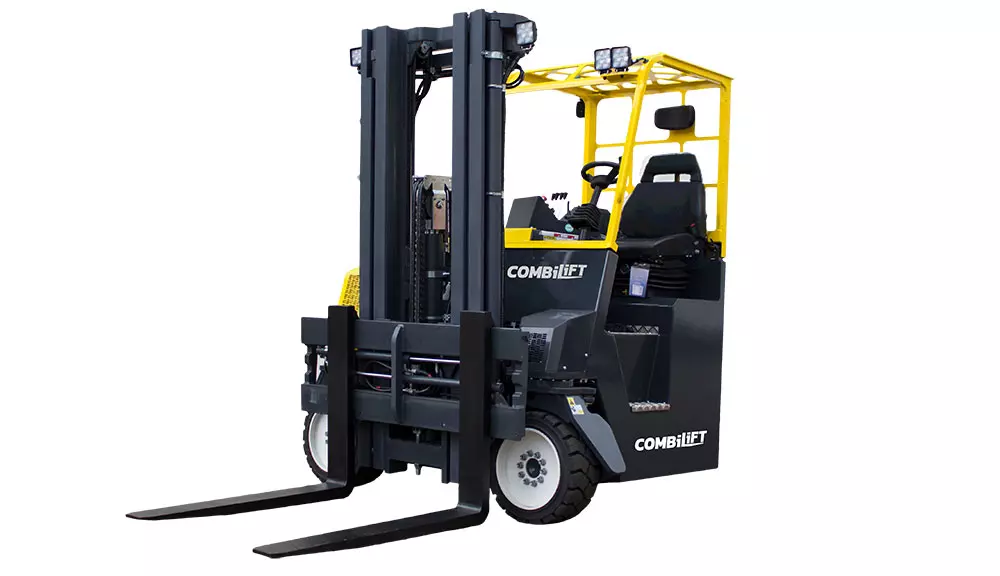

Combilift COMBI-CB8E Multi-Directional Forklift Combilift Equipment Inventory

Details

The innovative Combi-CB8E is designed to increase productivity, improve safety and help increase your storage capacity both indoors & outdoors.

Equipment Type
3 Wheel Electric / Forklifts

21 x 9 x 22 Front Tire x 2 (Solid Rubber):
OD 21 / Width 9

28 x 10 x 22 Rear Tire x 1 (Super Elastic Rubber):
OD 28/ Width 10

AC Electric Pump Moto:
25 ½ hp

AC Electric Traction Motor x 3:
4 hp (front) / 6.7 hp (rear)

Approach Angle:
30°

Backward Tilt:

Battery Capacity:
72 V

Capacity:
8,000 lbs

Departure Angle:
30°

Fork Section:
6 x 2 x 42

Forward Tilt:

Free Lift Height :
0″

Gradeability:
10%

Ground Clearance to Wheelbase Center :
5″

Ground Clearance Under Mast:
6″

Height Mast Closed :
114″

Height of Overhead Guard:
92 ¾”

Length From Face of Fork :
73 ½”

Load Center Distance:
23 ½”

Max. (Mast raised) :
199″

Maximum Ground Speed:
7 mph

Minimum Outside Radius:
65 ¾

Outside Spread of Fork Arms:
59″

Overall Length:
114″

Overhang Back :
6″

Overhang Front:
14 ⅓”

Ramp Angle:
20°

Standard Color:
Green & Grey

Standard. Lift Height :
159″

Suspension Seat :
Grammer MSG 65

Track Front:
55″

Unladen Weight:
19,275 lbs

Wheel Base :
53″

Width:
65″

  • +/- 100mm side shift
  • Load sensing steering
  • 4-Way lever positioning of wheels
  • System Communication via CAN-BUS
  • Multi-directional operation
  • 2 Wheel Electric Drive
  • Powered by AC Technology
  • Lithium-Ion Option Available
