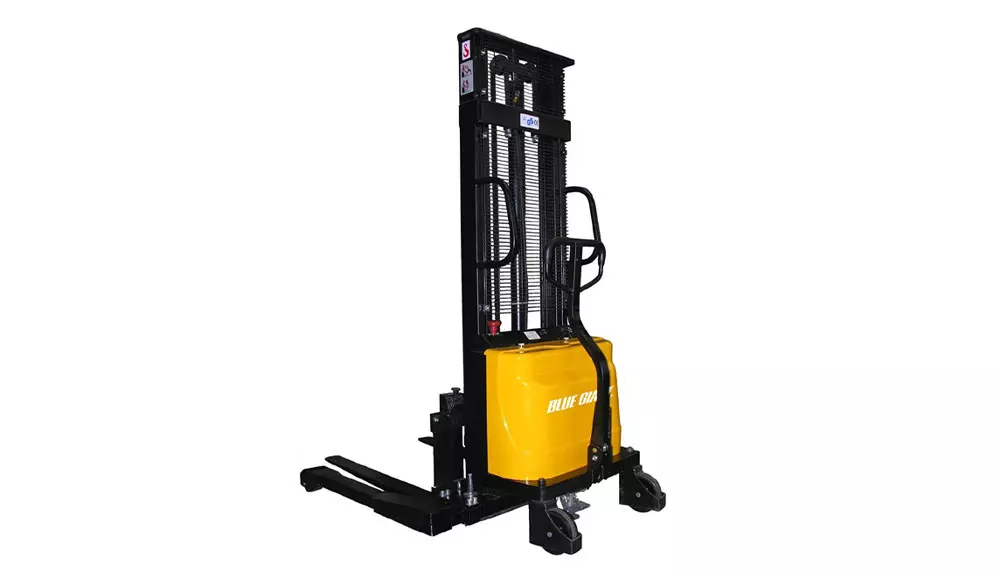

Blue Giant WPS Manual Push Stacker Blue Giant

Details

The WPS manual push stacker is a modern and highly versatile work positioning stacker for all modern material handling needs. Intermediate-duty and with a lift height of up to 150″ (3810 mm).

Equipment Type
Forklifts / Pallet Stackers

Capacity:
2,200 lbs (1000 kg)

Lift Height:
150″ (63″, 98″, 118″, 130″ options available)

Load Centre:
24″ (609 mm)

Lowered Fork Height:
2.75″ (70 mm)

Height, mast lowered:
101″ (2,565 mm)

Height, mast extended:
173.6″ (4,409 mm)

Fork Dimensions:
4″/42″/1.2″ (101/1067/30.5 mm)

Overall Width of Body:
44.5″ (1130 mm)

Turning Radius:
52.8″ (1341 mm)

Lift Speed, Laden/Unladen:
3.14″/sec (808 mm/sec)

Lowering speed, laden/unladen:
5.9″/sec (150 mm/sec)

Battery Voltage:
12V/200Ah

PERFORMANCE

  • Manually propelled with up / down level control mounted on dash
  • 12V system comes with low-maintenance deep cycle battery
  • Built-in 10AMP plug-in battery charger for 115V / 1PH / 60Hz power supply
  • Digital battery discharge indicator
  • Foot pedal parking brake supports instant stop action

ERGONOMICS

  • Ergonomic spring-loaded pull handle with comfort grip for reduced operator fatigue
  • Dual push handles mounted at comfortable height level on the mast

STRUCTURAL INTEGRITY

  • 24″ (610 mm) load center
  • Fork size: 42″ (1067 mm) standard, with 31″ (787 mm) OD adjustment on pin-style forks
  • Straddle legs adjust to three positions for varying pallet sizes
  • Channel mast fitted with heavy-duty roller bearings and dual lift chains
  • Sturdy operator protection screen preserves visibility
  • High-strength service cover protects internal components from impact damage
