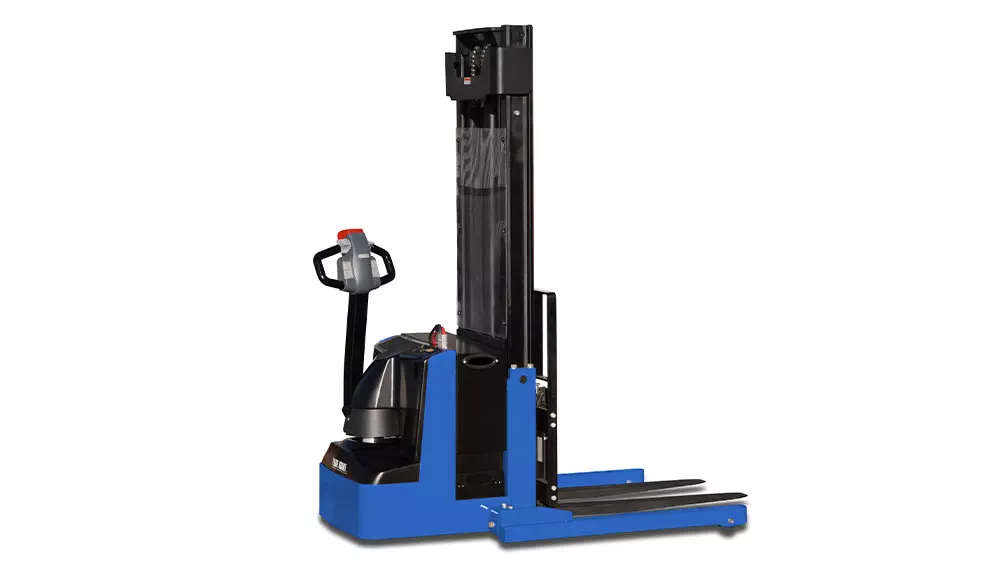

Blue Giant BGN-40 Powered Walkie Stacker Blue Giant

Details

The BGN-40 Powered Walkie Stacker builds upon proven performance standards by incorporating state-of-the art lift truck technology. It’s designed and engineered to meet and even exceed the demanding requirements of busy warehouses.

Equipment Type
Forklifts / Pallet Stackers

Capacity:
4,000 lbs

Lift Height:
177″ (104″, 126″, 142″, 157″ options available)

Height, mast extended:
213″

Collapsed Height:
80″

Free Lift:
28″

PERFORMANCE

  • 24V AC drive motor
  • 24V ZAPI programmable travel controller supports simple and precise truck positioning
  • Creep speed control allows for easier maneuvering at low speeds in tight places
  • Travel speed remains constant relative to throttle position regardless of the load
  • Regenerative braking kicks in when the forks are 12″ (305 mm) above height
  • Travel speed: 3.4mph (unloaded) and 3.1mph (under load)

ERGONOMICS

  • Travel, lift, and lower functions are located in the ergonomic operator handle, which can be operated with either hand
  • Hand grips fit the operator’s hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

  • Bolt-on high-visibility mast
  • Fork size: 42″ (1,067 mm) standard
  • 3″ (76 mm) adjustable straddle legs support easy positioning in racked aisles
  • 224 AH battery package (4-6 volt, maintenance-free AGM batteries), complete with automatic 25AMP / 110VAC plug-in internal charger
  • I-beam construction
  • Heavy-duty two-piece head cover protects major components from impact damage
