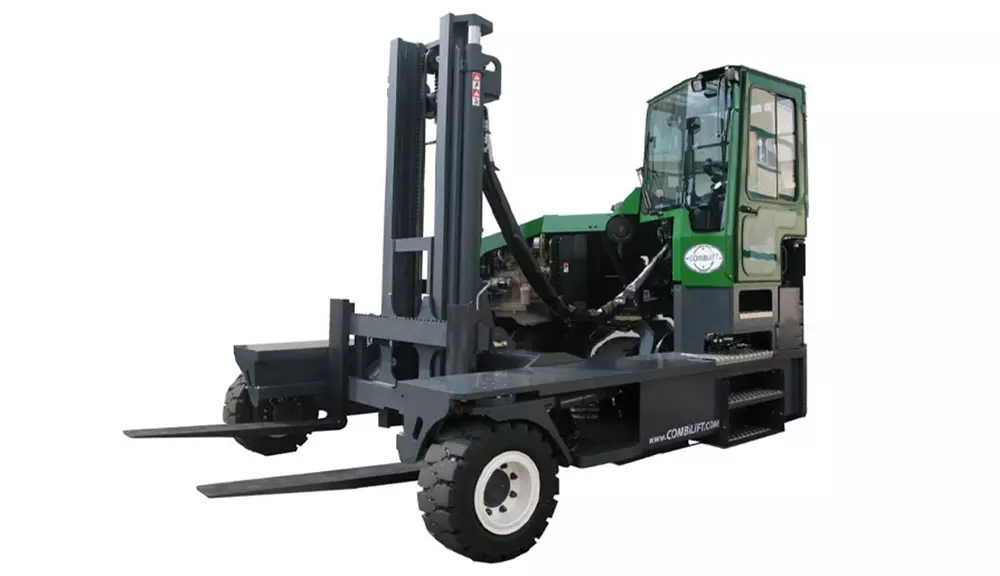

Combilift C30,000 Forklift Combilift

Details

The multi-directional forklift designed for the safe, space saving and productive handling of long and bulky loads.

Equipment Type
Forklifts / Internal Combustion Engine Trucks

  • 400 / 60 – 15 Front Tire:
    OD 32 ½” / Width 13”
  • 465 / 55 – 20 Rear Tire:
    OD 40” / Width 18”
  • Approach Angle:
    45°
  • Backward Tilt:
    8°
  • Capacity:
    30,000 lbs
  • Departure Angle:
    45°
  • Electrics:
    12 Volt
  • Fork Section:
    2 ½” x 10” x 58 ¾”
  • Forward Tilt:
    4°
  • Frame Opening :
    87”
  • Freelift Height:
    0”
  • Gradeability:
    15%
  • Ground Clearance to Center of Wheelbase:
    13”
  • Ground Clearance Under Mast:
    12”
  • Height Mast Closed:
    136”
  • Height Over Cab (Without work lights):
    125”
  • John Deere 4045 Diesel Engine:
    125 HP
  • Length From Face of Fork:
    61”
  • Load Center Distance:
    24”
  • Mast Travel:
    65”
  • Max. (Mast raised):
    228 ¼”
  • Max. Lift Height:
    161 ½”
  • Maximum Ground Speed:
    9 mph
  • Minimum Outside Radius:
    128”
  • Outside Spread of Fork Arms:
    80¾”
  • Overall Length:
    119 3/4”
  • Overhang Back:
    7¼”
  • Overhang Front:
    12”
  • Platform Height:
    38 ½”
  • Platform Length:
    58 ¾”
  • Ramp Angle:
    29°
  • Standard Color:
    Green & Gray
  • Suspension Seat:
    KAB Model 116
  • Track Front:
    125 ½”
  • Unladen Weight:
    36,500 lbs
  • Wheelbase:
    100 ½”
  • Width:
    138 ¼”
  • Hydraulic Oil Cooler
  • Multi-Direction Operation
  • 3 Wheel Hydrostatic Drive
  • Rubber Mounted Half Open Cabin
  • Load Sensing Steering
  • 4 Way Lever Positioning of Wheels
