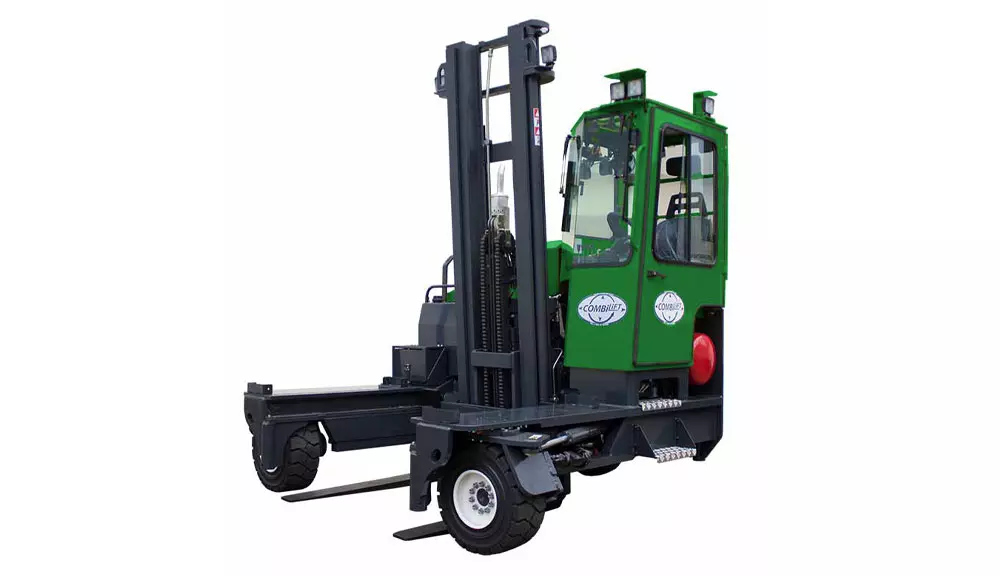

Combilift C10,000 XL Forklift Combilift

Details

The multi-directional forklift designed for the safe, space saving and productive handling of long and bulky loads.

Equipment Type
Forklifts / Internal Combustion Engine Trucks

  • 23 x 10 – 12 Front Tire:
    OD 23” / Width 10”

  • 28 x 12.5 – 15 Rear Tire:
    OD 28” / Width 11”

  • 3 ltr GM LPG:
    65 HP

  • Approach Angle:
    45°

  • Backward Tilt:
    5°

  • Capacity:
    10,000 lbs

  • Departure Angle:
    45°

  • Electrics:
    12 V

  • Fork Section:
    2” x 6” x 47”

  • Forward Tilt:
    3°

  • Frame Opening:
    55”

  • Free Lift Height:
    0”

  • Gradeability:
    15%

  • Ground Clearance to Wheelbase Center:
    10½”

  • Ground Clearance Under Mast:
    11”

  • Height Mast Closed:
    118”

  • Height Mast Closed:
    197”

  • Height Over Cab or of Overhead Guard:
    102”

  • Length from Face of Fork:
    51”

  • Load Center Distance:
    24”

  • Mast Travel:
    53”

  • Max. (Mast Raised):
    197”

  • Maximum Ground Speed:
    9 mph

  • Minimum Outside Radius:
    98”

  • Outside Spread of Fork Arms:
    53”

  • Overall Length:
    98”

  • Overhang Back:
    5½”

  • Overhang Front:
    11½”

  • Platform Height :
    27”

  • Platform Length:
    47”

  • Ramp Angle:
    29°

  • Standard Color:
    Green and Gray

  • Standard Lift Height:
    159”

  • Suspension Seat:
    KAB Model 116

  • Track Front:
    78”

  • Unladen Weight:
    15,000 lbs

  • Wheel Base:
    81½”

  • Width:
    88”

  • Load Sensing Steering
  • Hydraulic Oil Cooler
  • 3 Wheel Hydrostatic Drive
  • 4 Way Lever Positioning of Wheels
  • Rubber Mounted Half Open Cabin
  • Multi-Direction Operation
