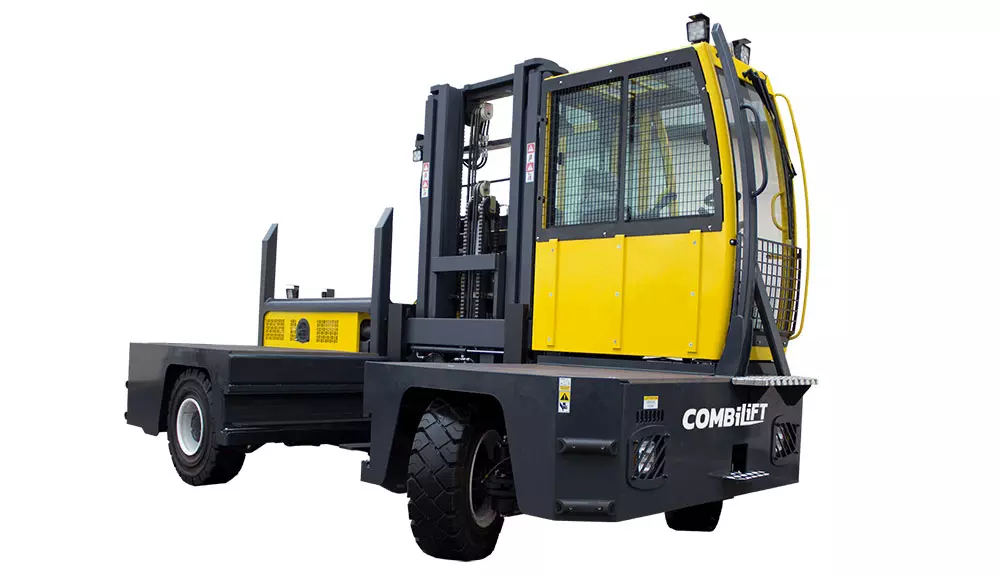

Combilift 10,000 4WSL Sideloader Forklift Combilift

Details

The 4 wheel Sideloader forklift designed for the safe, space saving and productive handling of long and bulky loads.

Equipment Type
Forklifts / Narrow Aisle

  • Backward Tilt:
    5°

  • Capacity:
    10,000 lbs

  • Deutz TCD 3.6 / 4.3 ltr GM LPG:
    76 HP/ 100 HP

  • Electrics:
    12 Volt

  • Fork Section :
    2” x 7 ¾” 47”

  • Forward Tilt:
    3°

  • Frame Opening:
    55”

  • Freelift Height:
    0”

  • Gradeability:
    15%

  • Ground Clearance to Center of Wheelbase:
    16”

  • Ground Clearance Under Mast:
    12”

  • Height Mast Closed:
    119 ½”

  • Height Over Cab (Without work lights):
    107”

  • Length:
    179 ½”

  • Length From Face of Fork :
    31 ½”

  • Load Center Distance:
    23 ½”

  • Mast Travel:
    49”

  • Max. (Mast raised):
    203”

  • Max. Lift Height:
    159”

  • Maximum Ground Speed:
    16 mph

  • Minimum Outside Radius:
    165”

  • Outside Spread of Fork Arms:
    50 ¾”

  • Overall Width:
    79”

  • Overhang Back:
    31 ½”

  • Overhang Front:
    15 1/4”

  • Platform Height:
    37 ½”

  • Platform Length:
    47”

  • Pneumatic / Super Elastic Front Tire:
    8.25 – 15

  • Standard Color:
    Yellow & Gray

  • Suspension Seat:
    KAB Model 116

  • Track :
    63 ¼”

  • Unladen Weight:
    16,530 lbs

  • Wheelbase:
    104 ¾”

  • Hydraulic Suspended Cabin
  • 2 Wheel Drive
  • Tilting Chassis
  • Wet Disc Brakes
  • Load Sensing Steering
  • Hydraulic Oil Cooler
