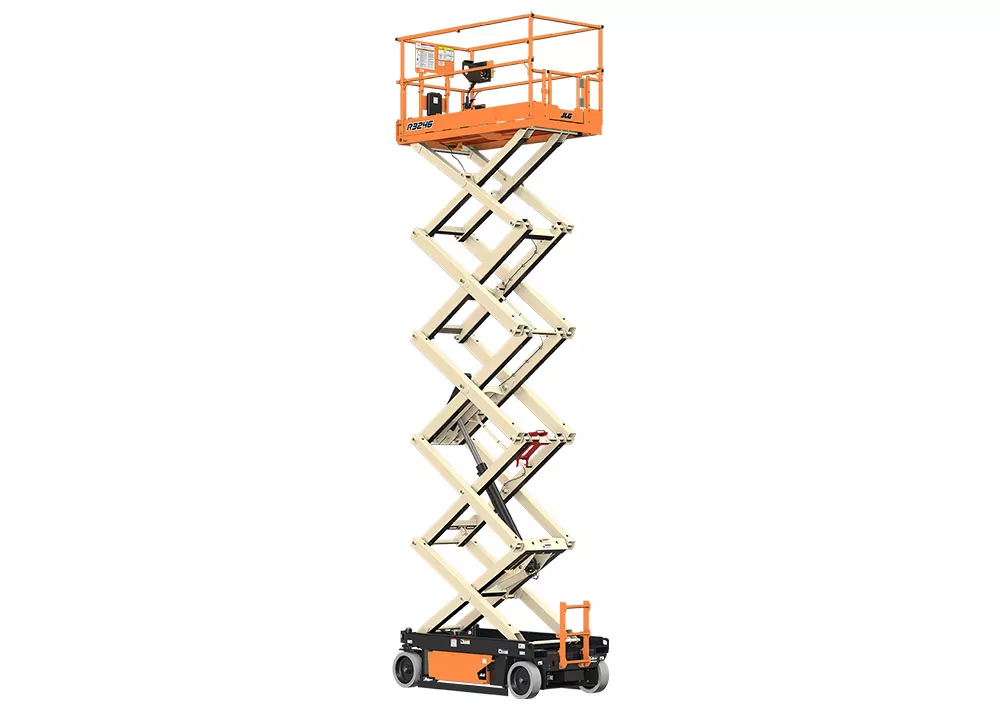

JLG R3246 Scissor Lift
Details
JLG R3246 electric scissor lifts are a rental-ready solution for all types of job sites. Offering greater affordability, reliability and serviceability, these scissor lifts have fewer parts and all-steel swing-out component trays. Their compact dimensions are ideal for confined spaces. Plus, the improved battery charger reduces guesswork by informing you on how your batteries are performing.
Key Specs
- Platform Height: 32 ft / 9.75 m
- Machine Width: 3 ft 10 in. / 1.17 m
- Working Height: 38 ft / 11.58 m
Key Features
- Experience the Lightest Scissor in Its Class: Lightweight with simplified lift system
- Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
- Meet the Highest Standards: Complies with A92.20 ANSI regulations
- Equipment Type
- Aerial Lifts / New Scissor Lifts
Batteries:
4 x 6V 220 amp-hour
Charger:
27 amp High Frequency Charger
Machine Weight:
5410 lb / 2453.93 kg
Drive Speed – Platform Elevated:
0.5 mph / 0.80 km/h
Drive Speed – Platform Lowered:
2.5 mph / 4.02 km/h
Grade-ability:
25 %
Lift Time:
54 sec.
Lower Time:
41 sec.
Maximum Drive Height:
32 ft / 9.75 m
Maximum Drive Height (Indoor):
32 ft / 9.75 m
Elevated Drive Height Outdoor:
32 ft / 9.75 m
Platform Capacity:
705 lb / 319.78 kg
Platform Capacity – Extension:
265 lb / 120.20 kg
Platform Capacity (Indoor):
705 lb / 319.78 kg
Platform Capacity (Outdoor):
507 lb / 229.97 kg
Turning Radius – Inside:
0 in. / 0 m
Turning Radius – Outside:
7 ft 9 in. / 2.37 m
Ground Clearance:
4 in. / 0.1 m
Machine Height:
8 ft / 2.45 m
Machine Height – Rails Folded:
6 ft 6 in. / 1.97 m
Machine Length:
7 ft 10 in. / 2.4 m
Machine Width:
3 ft 10 in. / 1.17 m
Platform Extension Length:
3 ft / 0.91 m
Platform Height – Lowered:
4 ft 3 in. / 1.29 m
Platform Railing Height:
3 ft 8 in. / 1.11 m
Platform Height:
32 ft / 9.75 m
Platform Height (Indoor):
32 ft / 9.75 m
Platform Height (Outdoor):
32 ft / 9.75 m
Working Height:
38 ft / 11.58 m
- Experience the Lightest Scissor in Its Class: Lightweight with simplified lift system
- Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
- Meet the Highest Standards: Complies with A92.20 ANSI regulations
Details
JLG R3246 electric scissor lifts are a rental-ready solution for all types of job sites. Offering greater affordability, reliability and serviceability, these scissor lifts have fewer parts and all-steel swing-out component trays. Their compact dimensions are ideal for confined spaces. Plus, the improved battery charger reduces guesswork by informing you on how your batteries are performing.
Key Specs
- Platform Height: 32 ft / 9.75 m
- Machine Width: 3 ft 10 in. / 1.17 m
- Working Height: 38 ft / 11.58 m
Key Features
- Experience the Lightest Scissor in Its Class: Lightweight with simplified lift system
- Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
- Meet the Highest Standards: Complies with A92.20 ANSI regulations
- Equipment Type
- Aerial Lifts / New Scissor Lifts
