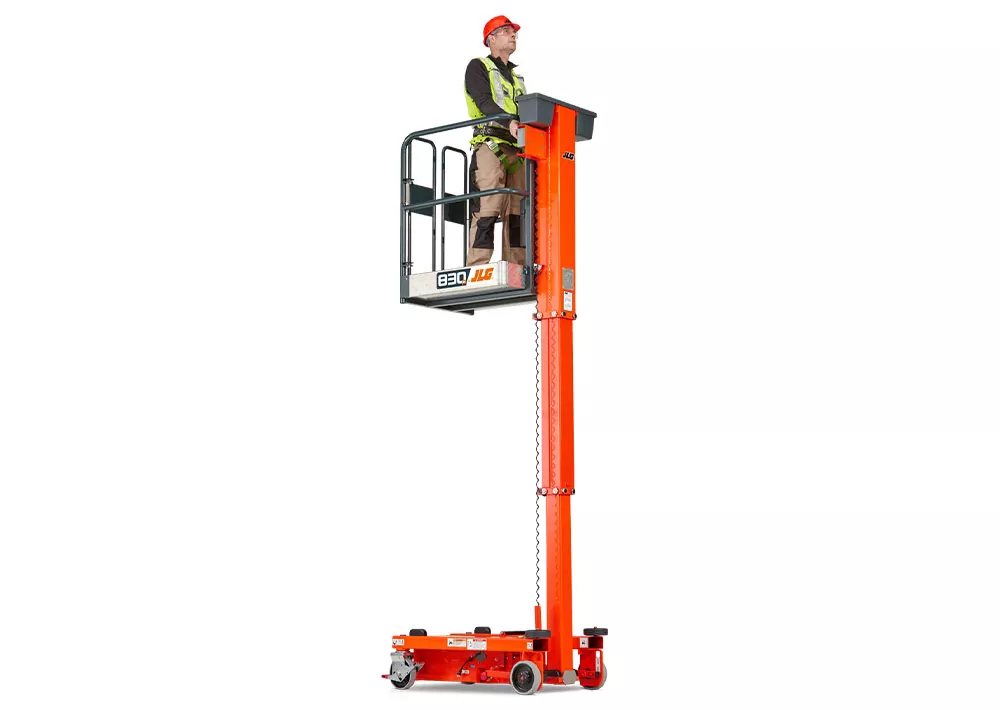

JLG 830P Vertical Lift
Details
Whether you’re doing finish work or routine maintenance, sometimes your toughest obstacles aren’t just overhead. For your most sensitive floors, you need a lift that gives you access without weight. Our JLG push around lifts combine height and reach with low ground pressure for challenging tasks, with the uptime you need to finish the job.
Key Specs
- Platform Height: 8 ft 2 in. / 2.49 m
- Machine Width: 2 ft 6 in. / 0.75 m
Key Features
- Easy to push into position; ideal for finish work and sensitive floor applications
- No setup time required — once in position, simply lock the caster wheels, press a button to elevate and get right to work
- Innovative flip up and self-supporting platform, combined with neatly packaged components, allow for unmatched service access
- Equipment Type
- Aerial Lifts / New Vertical Lifts and Stock Pickers
Machine Height:
5 ft 1 in. / 1.56 m
Machine Length:
3 ft 11 in. / 1.19 m
Machine Width:
2 ft 6 in. / 0.75 m
Platform Dimension A:
2 ft 5 in. / 0.74 m
Platform Dimension B:
3 ft 3 in. / 0.99 m
Platform Height:
8 ft 2 in. / 2.49 m
Working Height:
14 ft 2 in. / 4.32 m
Outriggers or Stabilizers:
No
Platform Capacity:
440 lb / 199.58 kg
Machine Weight:
628 lb / 284.86 kg
- Easy to push into position; ideal for finish work and sensitive floor applications
- No setup time required — once in position, simply lock the caster wheels, press a button to elevate and get right to work
- Innovative flip up and self-supporting platform, combined with neatly packaged components, allow for unmatched service access
