JCB TM320 Articulated Telescopic Handler JCB Equipment Inventory

Details

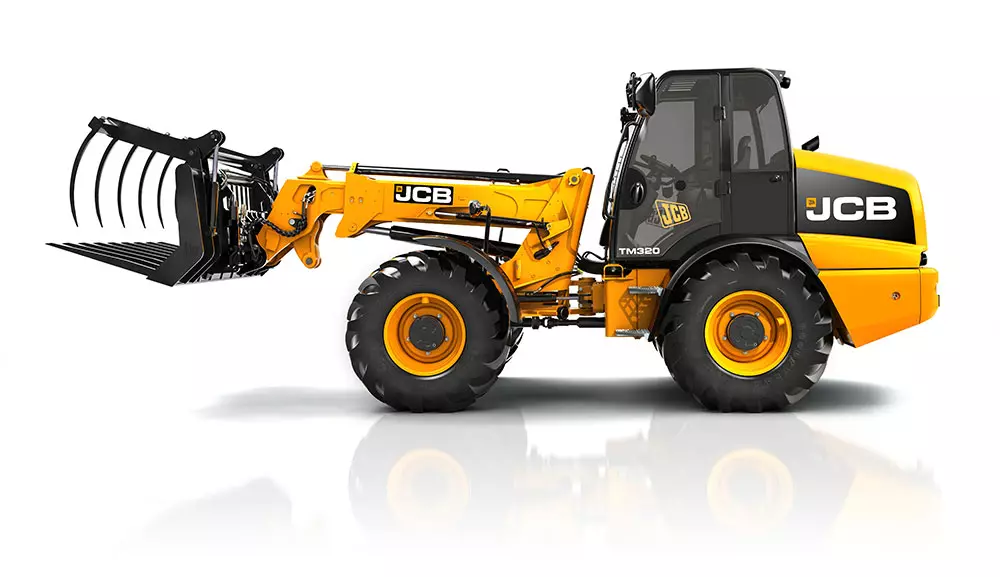

The JCB TM320 articulated telescopic handler combines the features and benefits of a JCB wheel loading shovel and JCB telescopic handler for maximum versatility around the farm. In addition to articulated steering and telescopic reach, the JCB TM320 Agri articulated telescopic handler is ideally suited to a huge range of attachments, for maximum productivity.

The JCB TM320 articulated telehandler is powered by a 125 hp JCB EcoMAX engine with high torque at low revs for reduced fuel consumption. The TM320 Agri also features a ±10-degree oscillating center joint and permanent four-wheel drive for great performance in any conditions. A Z-bar linkage makes for huge breakout force and attachment crowd power.

 A 6-speed JCB Powershift transmission with TorqueLock and class-leading powertrain components deliver high efficiency and productivity.

All of this adds up to a forward reach of 9 feet 10 inches, a lift capacity of 6,390 lb and a lift height of 17 feet 2 inches.

Equipment Type
Construction & Ag / Telehandler/Articulated Telescopic

Engine

Manufacturer:
JCB

Model:
EcoMAX

Capacity:
4.4 liters

Bore:
103 mm

Stroke:
132 mm

Aspiration:
Turbocharged/charge cooled

Cylinders:
4

Max gross power to SAE J1995/ISO 14396:
125 hp (93 kW) @ 2200 RPM

Net power to J1349/EEC 80/12:
115 hp (86 kW) @ 2,200 RPM

Gross torque:
405 ft lb (550 Nm) @ 1500rpm



Transmission

Type:
Powershift

Make:
JCB

Model:
PS760 – 6 speed

Max travel speed:
24 mph (40 kph)



Axles

Type:
Epicyclic hub reduction

Make:
JCB

Overall axle ratio/ drop box ratio:
13.71

Chassis angle oscillation:
±10º

Maximum travel speed:
24 mph (40 kph)



Dimensions

Overall height:
8′ 10″ (2,703 mm)

Overall width (over tires):
7′ 9″ (2,350 mm)

Wheelbase:
8′ 4″ (2,550 mm)

Ground clearance:
1′ 7″ (472 mm)

Height to top of boom pivot:
6′ 10″ (1,835 mm)

Wheel track:
6′ 2″ (1,870 mm)

Axle to shovel toe plate:
5′ 4″ (1,627 mm)

Axle to counterweight face:
7′ (2,143 mm)

Total length:
20′ 9″ (6,322 mm)

Dump reach:
3′ 1″ (933 mm)

Dump height:
14′ 10″ (4,511 mm)

Load over height:
17′ 1″ (5,200 mm)

Pin height:
17′ 7″ (5,367 mm)

Maximum dump angle:
39°

Roll back at carry:
41°

Total length to front of hitch:
19′ 4″ (5,886 mm)

Inside radius:
6′ 7″ (2,001 mm)

Outside radius (edge of tire):
14′ 3″ (4,350 mm)

Outside radius (over shovel):
15′ 2″ (4,633 mm)

Articulation angle:
±43°

Operating weight:
18,122 lbs (8,220 kg)

Front axle weight:
6,107 lbs (2,770 kg)

Rear axle weight:
12,103 lbs (5,490 kg)

  • 124 hp highly efficient JCB EcoMAX engine
  • Variflo flow-on-demand hydraulic system
  • Six-speed powershift transmission
  • Torque-lock system provides superior efficiency when roading
  • Class-leading comfort, durability and residual value
Details

The JCB TM320 articulated telescopic handler combines the features and benefits of a JCB wheel loading shovel and JCB telescopic handler for maximum versatility around the farm. In addition to articulated steering and telescopic reach, the JCB TM320 Agri articulated telescopic handler is ideally suited to a huge range of attachments, for maximum productivity.

The JCB TM320 articulated telehandler is powered by a 125 hp JCB EcoMAX engine with high torque at low revs for reduced fuel consumption. The TM320 Agri also features a ±10-degree oscillating center joint and permanent four-wheel drive for great performance in any conditions. A Z-bar linkage makes for huge breakout force and attachment crowd power.

 A 6-speed JCB Powershift transmission with TorqueLock and class-leading powertrain components deliver high efficiency and productivity.

All of this adds up to a forward reach of 9 feet 10 inches, a lift capacity of 6,390 lb and a lift height of 17 feet 2 inches.

Equipment Type
Construction & Ag / Telehandler/Articulated Telescopic
