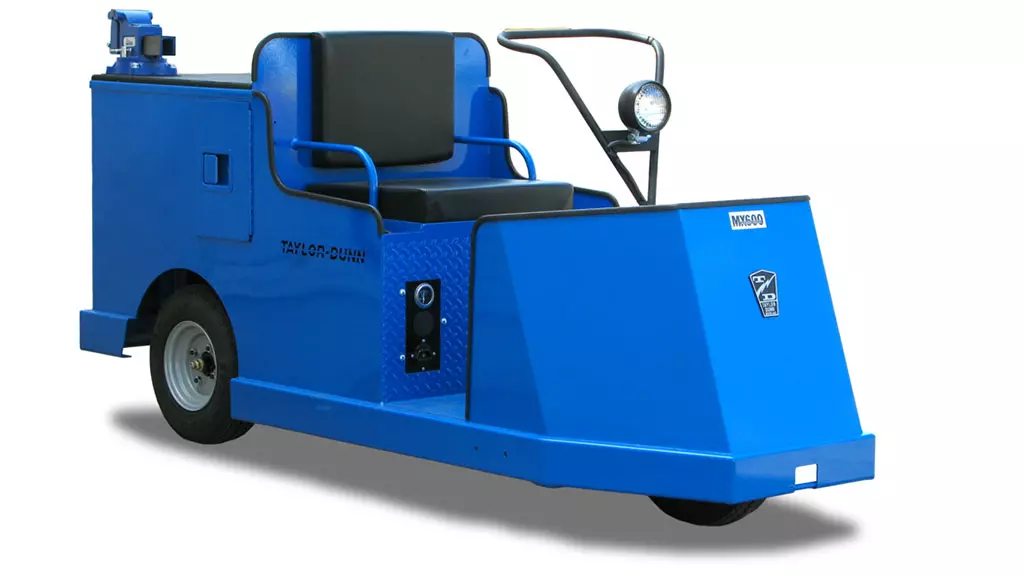

Taylor-Dunn MX-600 Burden Carrier Taylor-Dunn Utility Vehicles

Details

The MX-600 improves repair and maintenance productivity by reducing the time to each equipment to be serviced and providing a mobile work shop at the service site.

Equipped with 24-volt battery system, the MX-600 can travel at speeds of 9 mph. An all welded steel unitized body and frame is built to last for years of use. The modularized control system design provides ease of maintenance on all electrical systems. Safety loop tiller steering protects the driver, and a solid state controller and hall effect accelerator module provide safe acceleration during daily operation.

Equipment Type
Burden Carriers / Utility Vehicles

Engine & Drivetrain

Battery Range:
20 mile (32 km)

Drive System Type:
Direct Drive

Engine Type:
24V DC Electric

Fuel System/Battery:
6V Lead Acid

Horsepower:
4.5 HP

Top Speed:
9 mph (14 km/h)



Dimensions

Deck Size:
30 x 27 in ( 76 x 68 cm)

Estimated Dry Weight:
890 lb (403 kg)

Hitch Towing Rating:
2,000 lb (907 kg)

Overall Vehicle Size (L x W x H):
86 x 32 x 41 in. (218 x 81 x 104 cm)

Payload Capacity:
600 lb (272 kg)

Person Capacity:
1

Turning Radius:
81 in (205 cm)

Wheelbase:
55.5 in (140 cm)



Brakes

Front/Rear Brakes:
Mechanical rear drum

Parking Brake:
Foot Operated Parking Brake



Specifications

Adjustable Driver Seat:
Not Equipped

Instrumentation:
Battery Status Indicator, Forward/Reverse Selector, Key Switch, Electric Horn

Lighting:
Brake Light

Other Standard Features:
Seat cushion with full back rest, safety interlock seat switch

Seat Covering:
Black Vinyl

Tilt Steering:
Not Equipped



Tires / Wheels

Electronic Power Steering:
Not Equipped

Front Tires:
4.80 x 8, Load Range B, Pneumatic

Rear Tires:
4.80 x 8, Load Range B, Pneumatic



Suspension

Front Suspension:
Front fork with dual springs

  • OEM Parts
  • AC Motor
  • Electric Operation
  • Customizable
  • Improved Ergonomics
  • Low Step Height
  • Built-in Safety Elements
  • Additional Comfort Measures
