Taylor-Dunn C-432 Burden Carrier Taylor-Dunn Utility Vehicles

Details

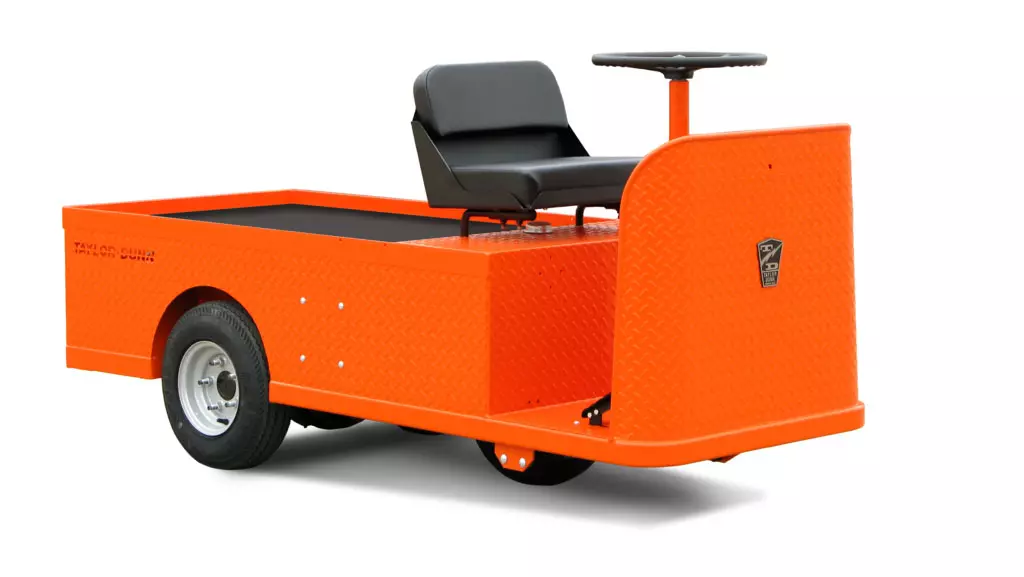

The C-432 Burden Carrier by Taylor-Dunn is an electric utility vehicle that offers a practical solution with optimal performance.

Our three-wheel design allows the C-432 to provide the shortest turning radius available in a sit-down combination burden carrier/tow tractor. With its 28-inch wheelbase, this vehicle can maneuver into corners other powered vehicles simply cannot reach. Equipped with heavy-duty batteries and a built-in fully-automatic charger, this vehicle is always ready to go. It’s ideal for moving loads over smooth floors in warehouses, hospitals, schools, and hotels where quiet, fume-free operation is necessary.

Equipment Type
Burden Carriers / Utility Vehicles

Engine & Drivetrain

Battery Range:
20 mile (32 km)

Drive System Type:
Automotive Differential

Engine Type:
36V DC Electric

Fuel System/Battery:
6V Lead Acid

Horsepower:
6 HP

Top Speed:
9 mph (14 km/h)



Dimensions

Deck Size:
29.5 x 46 in (75 x 117 cm)

Estimated Dry Weight:
918 lb (416 kg)

Hitch Towing Rating:
8,750 lb (3977 kg)

Overall Vehicle Size (L x W x H):
79 x 30 x 40 in. (201 x 76 x 102 cm)

Payload Capacity:
1,400 lb (635 kg)

Person Capacity:
1

Turning Radius:
70 in (178 cm)

Wheelbase:
28 in (71 cm)



Brakes

Front/Rear Brakes:
Mechanical rear drum Brake

Parking Brake:
Hand Operated Parking Brake



Specifications

Adjustable Driver Seat:
Standard

Instrumentation:
Battery Status Indicator, Forward/Reverse Selector, Key Switch, Electric Horn

Other Standard Features:
Single seat, with Safety Seat Switch

Seat Covering:
Black Vinyl

Tilt Steering:
Not Equipped



Tires / Wheels

Electronic Power Steering:
Not Equipped

Front Tires:
4.80 x 8, Load Range B, Pneumatic

Rear Tires:
4.80 x 8, Load Range B, Pneumatic



Suspension

Front Suspension:
Solid

Rear Suspension:
Solid

  • OEM Parts
  • AC Motor
  • Electric Operation
  • Customizable
  • Improved Ergonomics
  • Low Step Height
  • Built-in Safety Elements
  • Additional Comfort Measures
