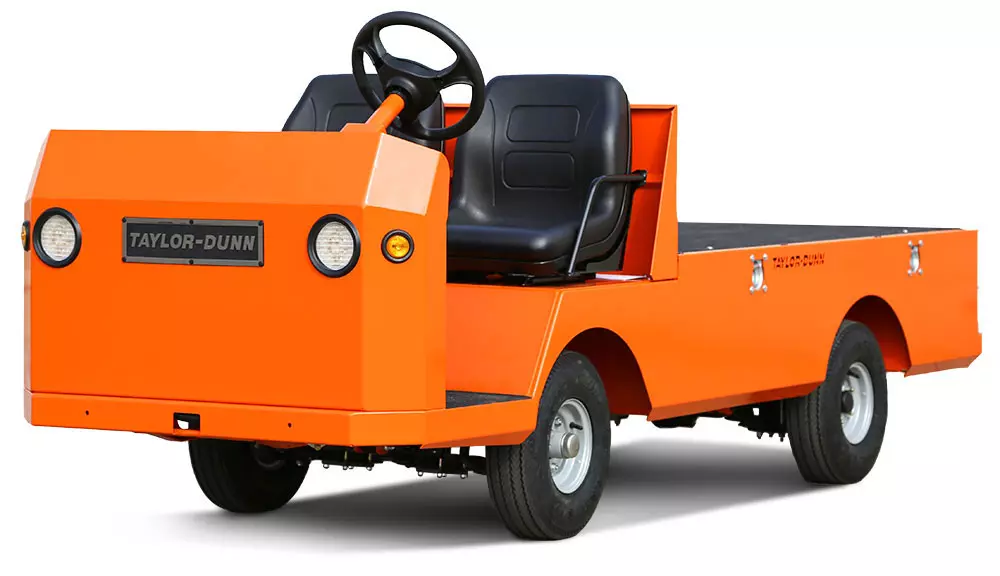

Taylor-Dunn BIGFOOT® Burden Carrier Taylor-Dunn Utility Vehicles

Details

Taylor-Dunn’s BIGFOOT, with its game changing design, offers a large operator’s compartment, tilted steering, and sliding adjustable seats, which increases legroom and reduces operator fatigue.

Additional standard features include our GT Drive system, 36 or 48 volt AC power, hydraulic disc brakes, regenerative braking, recessed tie-downs, 12 gauge smooth skin, unitized steel body, LED lighting, cupholders, and a heavy duty all gear drive train that ensures reliability and low maintenance costs. This vehicle can be configured to tow 17,500 pounds.

Equipment Type
Burden Carriers / Utility Vehicles

Engine & Drivetrain

Battery Range:
30-40 mile (48-64 km)

Drive System Type:
GT Drive

Engine Type:
36V AC / 48V AC Electric

Fuel System/Battery:
6V Lead Acid

Horsepower:
7.5 / 12.5 HP

Top Speed:
12 mph (19 km/h)



Dimensions

Deck Size:
44 x 77 in (112 x 196 cm)

Estimated Dry Weight:
1450 lb (658 kg)/1565 lb (710 kg)

Ground Clearance:
5.5 in (14 cm)

Hitch Towing Rating:
7,500 lb (3400 kg)

Overall Vehicle Size (L x W x H):
130.5 x 44 x 51.5 in. (331 x 112 x 131 cm)

Payload Capacity:
3,000 lb (1,360 kg)

Person Capacity:
2

Turning Radius:
137 in (348 cm)

Wheelbase:
62 in (158 cm)



Brakes

Front/Rear Brakes:
Rear Hydraulic Disc Brakes

Parking Brake:
Hand Operated Parking Brake



Specifications

Adjustable Driver Seat:
Standard

Instrumentation:
Smart View Display: (battery status indicator, hour meter, fault code display), reverse buzzer, F-N-R switch, key switch, light switch, high/low speed switch, emergency power cut-off switch, DC/DC converter, dual USB port, electric horn

Lighting:
Dual LED headlights, taillights and brake lights

Other Standard Features:
Bucket seats, driver’s seat electrical interlock, recessed tie-downs

Seat Covering:
Black Vinyl

Tilt Steering:
Not Equipped



Tires / Wheels

Electronic Power Steering:
Not Equipped

Front Tires:
5.70×8 Load Range C Pneumatic

Rear Tires:
5.70×8 Load Range C Pneumatic



Suspension

Front Suspension:
Multi-leaf springs

Rear Suspension:
Multi-leaf springs

  • OEM Parts
  • AC Motor
  • 36 or 48 Volt Options Available
  • Lithium-Ion Option Available
  • Electric Operation
  • Customizable
  • Improved Ergonomics
  • Low Step Height
  • Built-in Safety Elements
  • Additional Comfort Measures
