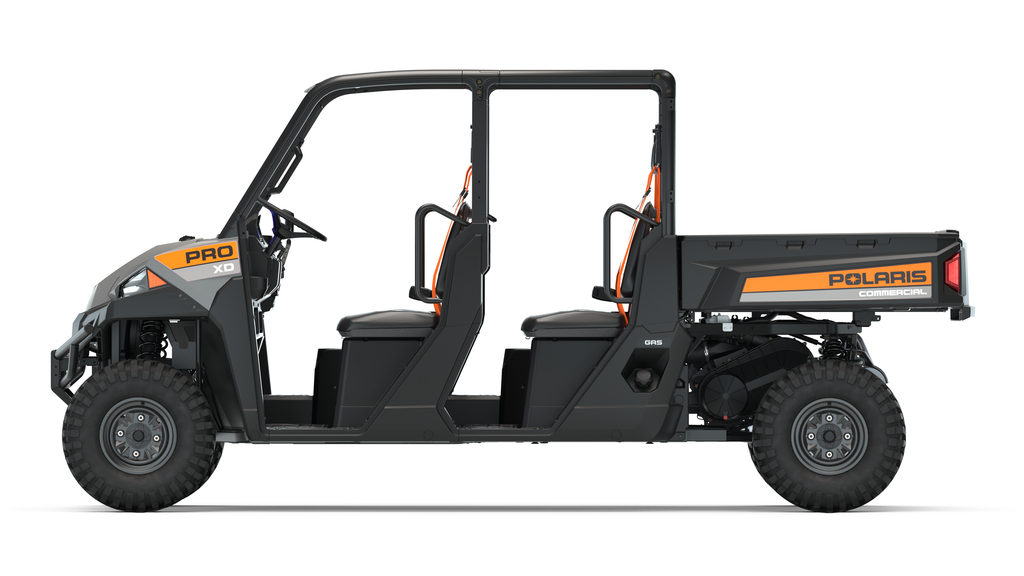

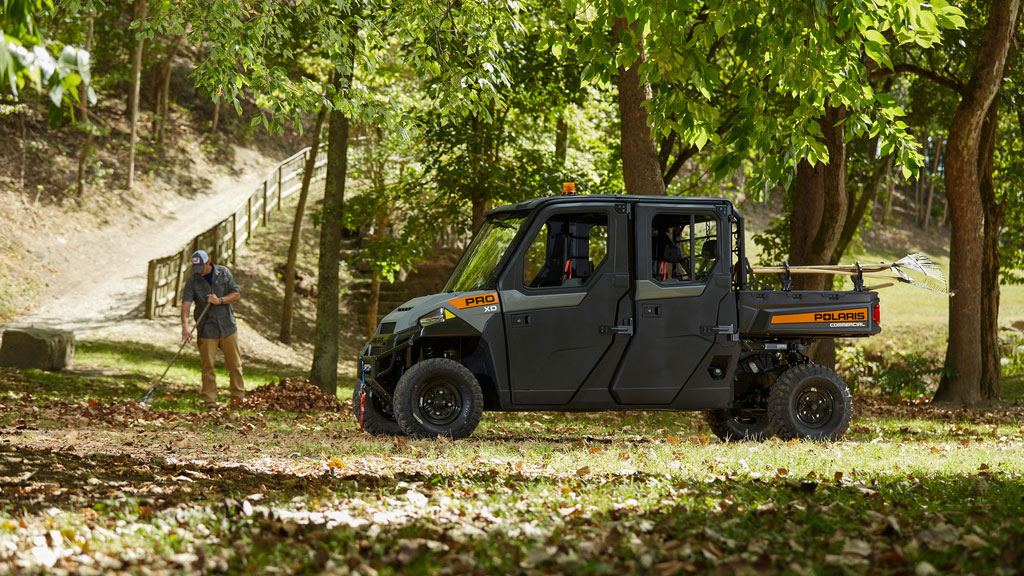

Pro XD Full-Size Gas Crew Utility Vehicle

Details

The Pro XD Full-Size Gas Crew is a four passenger all-wheel drive commercial gas utility vehicle built to withstand the tough duty cycles and usage on the worksite – the new work UTV standard.

Equipment Type
Utility Vehicles / Utility Vehicles

Engine & Drivetrain

Air Intake
Front Air Intake with Donaldson® Cyclonic Air Filter

Cooling
Liquid

Cylinders Displacement
1,000 cc

Drive System Type
On-Demand 4×4

Engine Type
ProStar 1,000 cc Gas

Fuel System/Battery
Electronic Fuel Injection

Horsepower
39.5 HP

Maintenance Interval
100 Hours (25 Hour initial)

Top Speed
Adjustable up to 40 mph (64 km/h)

Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft



Dimensions

Bed Box Dimensions (L x W x H)
43.5 x 54 x 11.5 in (110.5 x 137 x 29 cm)

Box Capacity
1,250 lb (567 kg)

Estimated Dry Weight
1,913 lb (868 kg)

Fuel Capacity
11.5 gal (43.5 L)

Ground Clearance
11 in (27.9 cm)

Hitch Towing Rating
2,500 lb (1,134 kg)

Overall Vehicle Size (L x W x H)
157 x 62.5 x 75 in (399 x 159 x 191 cm)

Payload Capacity
2,075 lb (941 kg)

Person Capacity
4

Turning Radius
154 in (391 cm)

Wheelbase
117 in (297.2 cm)



Tires / Wheels

Electronic Power Steering
Standard

Front Tires
26 x 10-12 Duro® DI-2042 Power Grip (M/T)

Hubs
Front: Steel; Rear: Ductile Iron

Rear Tires
26 x 10-12 Duro® DI-2042 Power Grip (M/T)

Wheels
12 x 6 HD Steel – Gloss Black



Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers

Parking Brake
Park in Transmission



Suspension

Front Suspension
9 in (22.9 cm)

Rear Suspension
9 in (22.9 cm)



Additional Specifications

Adjustable Driver Seat
Not Equipped

Cargo System
Lock & Ride

Hitch Type
Standard 2 in (5 cm) Receiver

Lighting
55W low/ 60W high, LED Tail

Other Standard Features
Horn, Backup Alarm

Seat Covering
Kevlar®-Backed Vinyl (Grey)

Tilt Steering
Standard

Instrumentation
All Digital Gauge, Speedomoter, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Diff Lock Indicator, ht, Clock, Clutch Belt Slip Warning, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator
