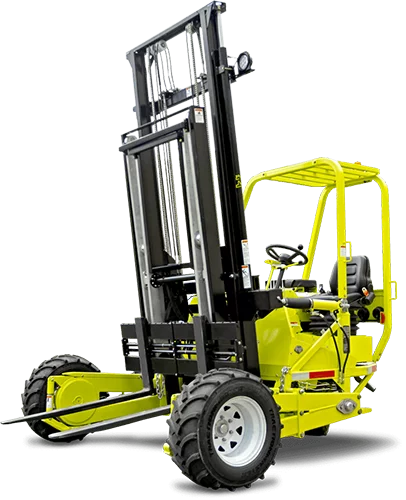

Donkey 4k Series Truck-Mounted Forklift

Details

Affordable and lightweight with a lifting capacity of 4,000 pounds, this unit is the lightest ride-on unit in the Donkey line up. The 4K has standard features that include side shift, strobe light, smart backup alarm, and corrosion resistant features. Driven by a Tier 4 compliant Kubota diesel engine and a 6 speed GM transmission, this unit is capable of reaching speeds of up to 15 mph for greatly improved delivery time for those really long hauls.

Equipment Type
Forklifts / Truck-Mounted

Capacity:
4,000 Lbs Load Capacity

Weight:
3,675 Lbs

Engine/Transmission:
Tier 4 compliant 25 HP Kubota 3 cylinder diesel engine or optional 50 HP Kubota Gasoline Engine

Top Speed:
12 MPH

Mast:
70″ Lift Height Standard
88″, 96″ / 120″ Lift heights available as options
Tilt: 7/8
Class: 48.25

Pano Reach:
44″

Headboard Width:
48″ standard
60″ optional

Side Shift:
4″ total
2″ either side of center

Reach:
Scissor reach optional for both single and two stage masts 44″ and 56″

Reach Past Wheels (RPW):
17″
At fork ends: 65″

Load Spacing:
Load spacing 64″ standard
68″ optional (no engine limitations)

Ground Clearance:
8″

Overhang:
57″

Tires:
Terra, Turf, and Skid
Size: 29

Wheel Base:
68.25″

Third Wheel Drive:
Standard

Forks:
48″

  • The only truck-mounted single axle solution®
  • The lightest, fastest, most versatile forklift in America
  • Lowest ground pressure (LGP) of any forklift on the market
  • Centralized weight distribution
  • Longest standard reach in the industry
