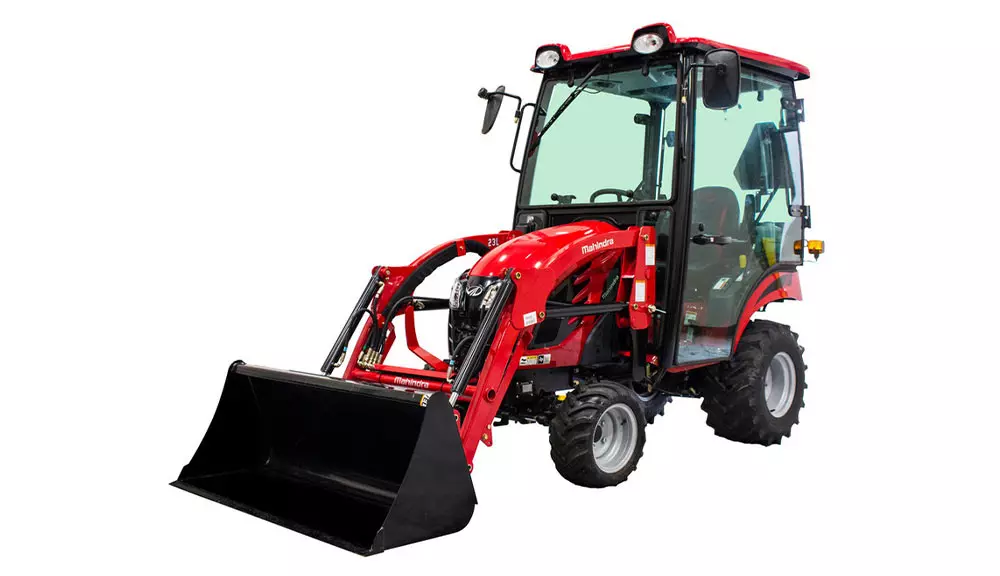

Mahindra eMax 20S HST Cab Sub-Compact Tractor
Details
The Mahindra eMAX 20S Cab combines compact size with big-tractor capability, featuring 19.4 horsepower, a hydrostatic transmission, standard 4WD, and a best-in-class turning radius. Its enclosed cab with a standard heater provides year-round comfort, making it easy to tackle property maintenance tasks in any season.
A wide range of available attachments, including a drive-over mower deck, quick-attach loader, quick-attach bucket, and snow removal equipment, gives the eMAX 20S the versatility to handle mowing, lifting, hauling, and seasonal property maintenance with ease.
- Equipment Type
- Construction & Ag / Tractors
AG [Front/Rear]:
18 x 8.5-10 / 26 x 12-12
Alternator:
12 V, 45 A
Battery:
12 V, 450 CCA
Brakes:
Wet Disc
Clutch:
Dry-Single
Engine HP [kW] @ RPM:
19.4 (14.5) @ 3000
Engine Type:
Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine, Complies with US TIER-4 Final Norms
Fuel Tank [gal (L)]:
6.6 (25)
Hydraulic Type:
Open Center
Implement Pump Output [gpm (L/min)]:
4.1 (15.5)
IND [Front/Rear]:
18 x 8.5-10 / 26 x 12-12
Loader Lift Capacity [lb (kg)]:
617 (280)
Maximum Total Flow [gpm (L/min)]:
6.2 (23.4)
Mid PTO RPM:
2500 (Std) @ 2958
Minimum Ground Clearance [in (mm)]:
8.3 (210)
Number of Cylinders:
3
Number of Speeds:
Infinite
Overall Height [in (mm)]:
79.6 (2023)
Overall Length [in (mm)]:
94.2 (2392)
Overall Width [in (mm)]:
44.5 (1130)
PTO HP (kW):
14.2 (10.6)
PTO Type:
Independent
Rear PTO RPM:
540 @ 2942
Transmission:
HST – 2 ranges
TURF [Front/Rear]:
18 x 8.5-10 / 26 x 12-12
Turning Radius [ft (m)]:
7.2 (2.1)
Weight [lb (kg)]:
1800 (817)
Wheelbase [in (mm)]:
53.1 (1348)
- Foldable rops with seatbelt
- Powerful loader and fast detach/attach system with skid steer couplers
- Larger tires
- Power steering
- Curved boom for better visibility
- Foldable armrests
