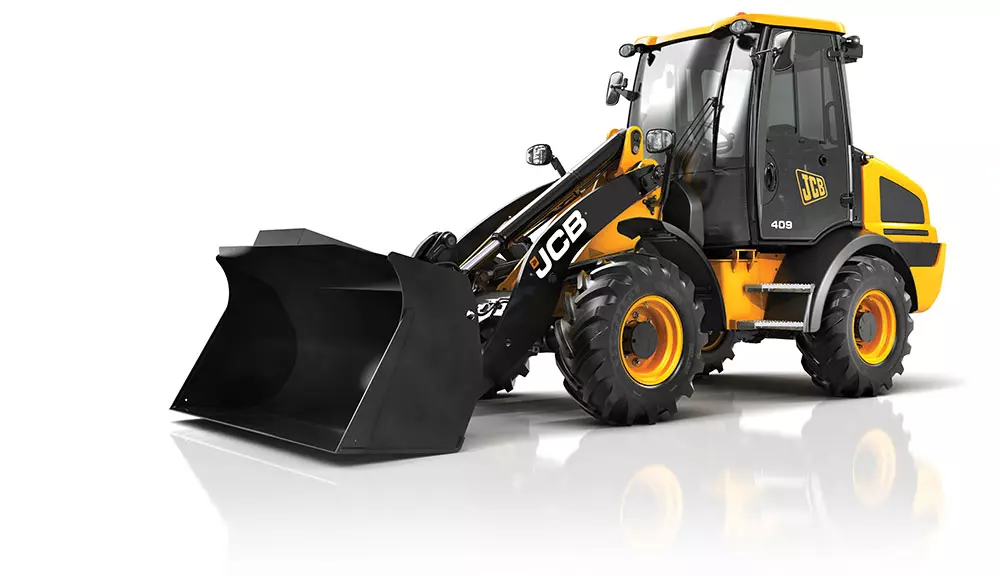

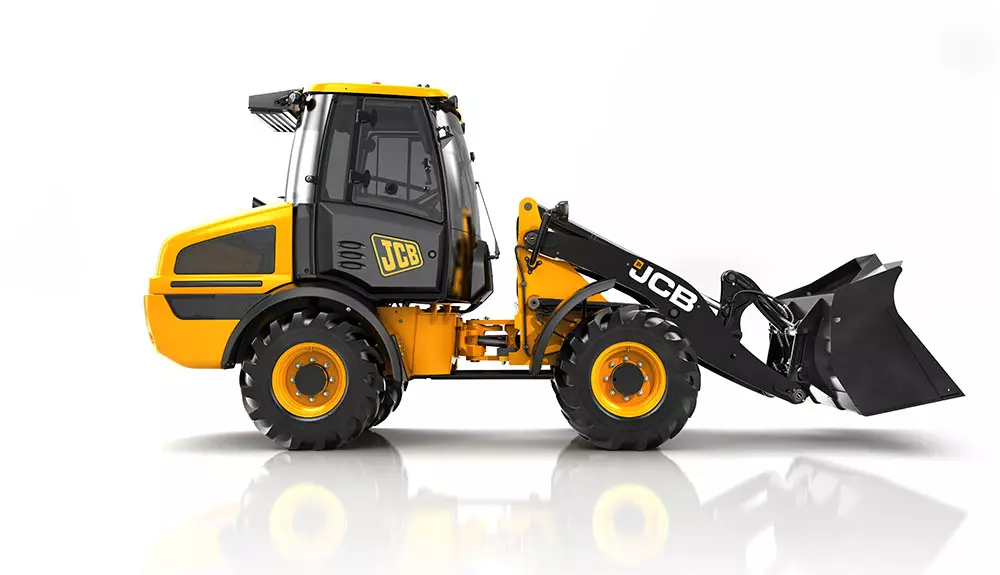

JCB 409 Wheel Loader JCB Equipment Inventory

Details

Based on the design of the 407, the JCB 409 offers increased power and payload for increased productivity.

Its compact dimensions and low height over cab combined with a pivot-steer design and articulated chassis, provides incredible maneuverability and a tight turning radius. That makes the JCB 409 compact wheel loader indispensable for working in restricted spaces and buildings.

Equipment Type
Construction & Ag / Wheel Loaders

Engine

Type:
4 stroke, Electronic Common Rail

Model:
JCB Diesel by Kohler – KDI 2504 TCR

Capacity:
2.482 liters

Aspiration:
Turbo charged

Cylinders:
4

Max gross power (SAE J1995/ISO 14396):
64 hp (48 kW) @ 2200rpm

Max torque:
221 lbf (300 Nm)

Emissions:
Stage IIIB & T4F



Transmission

Type:
Hydrostatic

Model:
Rexroth A6VM – 2 speed

Model (high speed option):
Rexroth A6VM – 3 speed

Low range:
3.75 mph (6 kph)

High range:
12.4 mph (20 kph)

Maximum speed (high speed option):
24.8 mph (40 kph)



Axles

Type:
Straight beam

Make and model:
Dana Spicer 111

Chassis angle oscillation:
±10°



Dimensions

Overall length:
17′ 11″ (5,465 mm)

Axle to pivot pin:
3′ 8″ (1,130 mm)

Wheelbase:
7′ 3″ (2,205 mm)

Axle to counterweight face:
4′ 3″ (1,295 mm)

Ground clearance:
1′ 7″ (472 mm)

Width over cab:
4′ 10″ (1,468 mm)

Width over tires:
6′ 3″ (1,898 mm)

Wheel track:
4′ 11″ (1,490 mm)

Height over cab:
8′ 8″ (2,643 mm)

Front axle weight:
4,079 lbs (1,850 kg)

Rear axle weight:
8,986 lbs (4,076 kg)

Total weight:
13,065 lbs (5,926 kg)

Inside turn radius:
6′ 10″ (2,079 mm)

Maximum turn radius over bucket:
14′ 6″ (4,432 mm)

Maximum radius over tire:
13′ 1″ (3,979 mm)

Maximum radius across tires:
6′ 3″ (1,900 mm)

Articulation angle:
±40°

  • Pivot steer for excellent maneuverability
  • Turbocharged engine
  • Easy ground level service access
  • 500 hour engine service intervals
  • Full cab with heater and A/C
  • Tool carrier parallel lift loader arm geometry
  • LSD front and rear axles
  • 3-spool servo hydraulics
  • Skid steer hitch with auxiliary hydraulics
  • Front and rear work lights
  • In-cab speakers and roof liner
  • Tilt and slide steering column
  • Grid heater
  • Block heater
  • Bucket level indicator
  • Mechanical park brake
