Advance CS7010 Sweeper Scrubber Advance

Details

Greener, Cleaner and Smarter

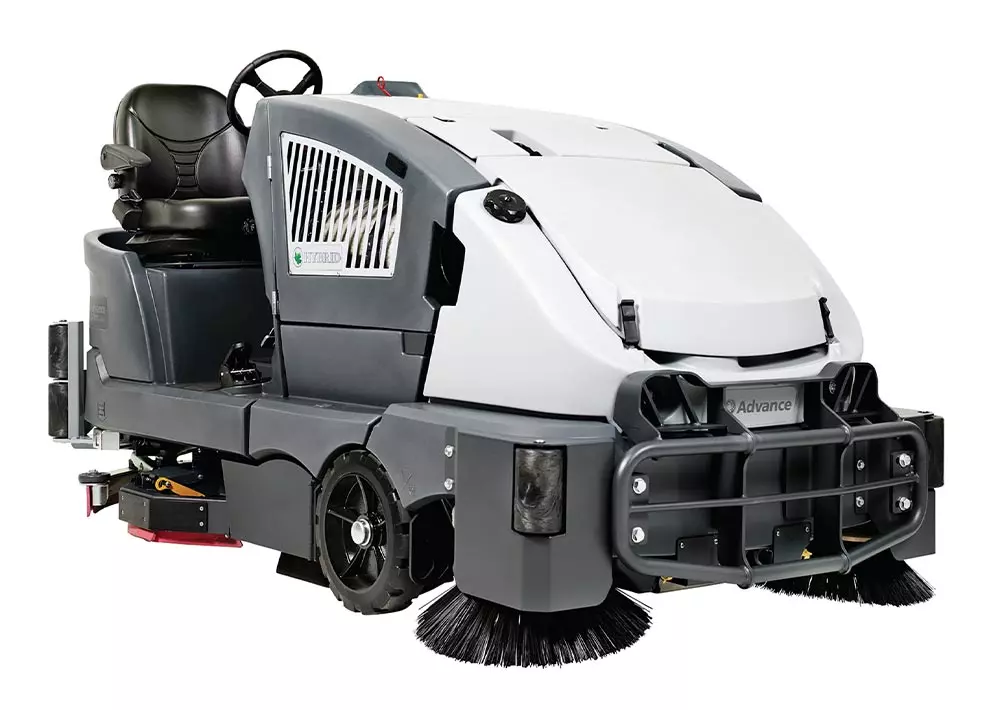

The innovative CS7010™ is the industry’s first hybrid and ePower™ battery drive combination sweeper-scrubber, reinventing an entire class of equipment and slashing your Total Cost of Ownership. Available in three models — LPG-Hybrid, Diesel-Hybrid and ePower Battery.

Benefits of CS7010 Hybrid & Battery Drive Sweeper-Scrubbers
The CS7010 takes sustainable cleaning to the next level. You’ll reduce your cleaning time and costs from the benefits of dedicated dry sweeping and wet scrubbing in a single pass, and achieve up to 30% fuel savings from Hybrid technology. The CS7010’s low maintenance, leak-free Electric Drive Technology replaces inefficient, higher maintenance hydraulic systems.

Equipment Type
Cleaning Equipment / Sweepers/Scrubbers

  • Adjustable steering and seat:
    Included

  • Automatic speed reduction:
    Included

  • Break away Squeegee:
    Included

  • Brushes/pads qty.:
    3 x 17 in (43 cm) disc

  • Clear-View™:
    Included

  • Debris hopper dump height:
    60 in (152 cm)

  • Dual Side Broom Standard:
    Included

  • Dust control:
    115 ft2 (`10.7 m2) Donalson high-capacity PowerCore® UltraWeb® filter w/synthetic media. Variable frequency automatic filter shaker

  • DustGuard™ Dust-control System:
    Included

  • DustGuard™ Tank Capacity (optional):
    29 gal (110 L)

  • Empty weight:
    3,636 lb (1,649 kg)

  • Ergonomic Cockpit:
    Included

  • Gradeability transport % (DEG):
    @gross weight—Scrubbing 21% (12 deg.); Sweeping 17.6% (10 deg.)

  • Gross vehicle weight lbs (kg):
    4,676 lb (2,121 kg)

  • Height:
    [59 in (150 cm)] [82 in (208 cm) std. overhead guard] [79 in (201 cm) low clearance overhead guard]

  • Hopper capacity ft³ (l):
    7 ft3 (198 L) 300 lb (136 kg)

  • Hopper safety prop rod:
    Included

  • Intuitive Control Panel :
    Included

  • Length:
    103 in (262 cm)

  • Main broom:
    36 in (90 cm) x 12.2 in (31 cm)

  • Max sweeping speed (KM/H):
    3.5 mph (5.6 km/h) w/override capability

  • Max. scrub speed:
    3.5 mph (5.6 km/h) w/override capability

  • Max. scrubbing coverage rate per hour:
    118,600 ft2 (11,000 m2)

  • Max. transport speed mph (km/h):
    5.5 mph (8.9 km/h)

  • MaxAccess™:
    Included

  • Min. aisle turn (cm):
    104 in (264 cm)

  • Model No:
    56511795

  • Multi-frequency filter shaker:
    Included

  • No tools required for attachment change:
    Included

  • Offset pivoting deck:
    Included

  • Operational run time (hr):
    Sweeping/Scrubbing2 – LPG – 5.5 hrs. w/32 lb (14.5 kg) tank

  • Power:
    Kubota WG972: 3 cyl., 0.96 L – 30 hp (22.0 kW)

  • Propulsion system:
    Variable speed brushless A/C drive

  • Scrub path in. (cm):
    48 in (122 cm)

  • Scrub pressure lbs (kg):
    Three scrub pressure settings up to 400 lb (182 kg) of down force at maximum setting

  • SmartFlow system:
    Included

  • Solution/recovery tank capacity:
    75 gal (285 L) each

  • Sound level (IEC60335-2-72):
    82 dB A

  • Sweeping coverage rate per hour:
    146,400 sq ft (13,600 sq m)

  • Sweeping path w./ dual side brooms (cm):
    61 in (154 cm) – Squeegee path width is fully swept

  • Tilting recovery tank:
    Included

  • Vacuum:
    Recovery – Dual vac fan motors capable of 65 in (165 cm) waterlift

  • Water Ingression:
    All electric drive motors and actuators rated IP55 for water washdown

  • Width:
    48 in (122 cm)

  • Clean more sustainably, with up to 30% savings on water and detergent, with the standard SmartFlow™, and even more with the optional EcoFlex™ system
  • Control airborne dust generated by the side brooms with optional DustGuard™
  • Simplify routine maintenance and minimize service costs with MaxAccess™ design
  • Complete dry sweeping system with dual side brooms, powerful main broom, dust control system, and high capacity 7 ft 3 high-lift hopper system
  • Ensure operator safety with our Clear-View™ design, automatic speed reduction in turns and seat-accessible hopper safety prop rod
  • Choose from the broadest range of machine power configurations in the industry — Hybrid – Kubota LPG, diesel, or gasoline plus superior run-time battery and fuel cell
  • Improve air quality with the Donaldson PowerCore® Ultra-Web™ nanofilter with MERV 13 rating and a variable frequency shaker
