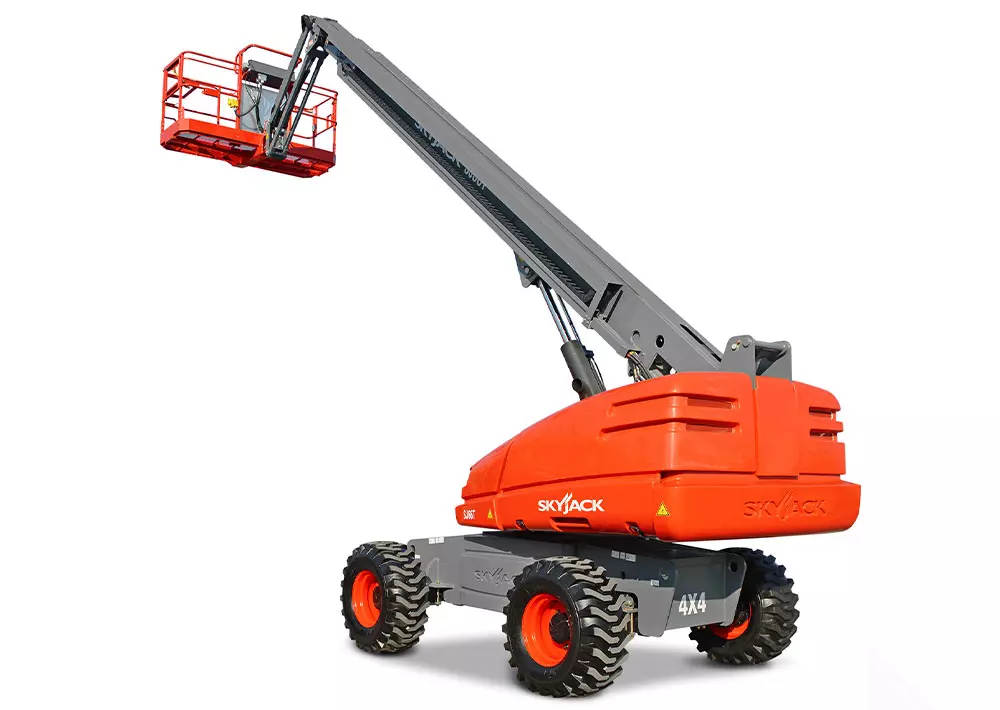

Skyjack SJ61/66 T+ Boom Lift
Details
Skyjack SJ61/66 T+ telescopic booms are ideal when extended horizontal and vertical outreach are key for the job site. These offer precise positioning paired with high capacity platforms and industry-leading reach.
- Equipment Type
- Aerial Lifts / Telescopic Boom Lifts
Work Height
SJ61: 67’ 8” (20.62 m)
SJ66: 72’ 3″ (22.02 m)
Platform Height:
SJ61: 61’ 8” (18.80 m)
SJ66: 66’ 3″ (20.19 m)
Platform Size:
36” x 96” (0.91 x 2.44 m)
Weight:
SJ61: 25,050 lbs (11,365 kg)
SJ66: 27,745 lbs (12,585 kg)
Drive Speed (High Speed):
4.5 mph (7.2 km/h)
Capacity:
660 / 1000 lbs (300 / 454 kg)
Horizontal Reach:
SJ61: 51’ 3” (15.62 m)
SJ66: 57’ 0.25″ (17.38 m)
Diesel Engine:
Deutz TD2.9L – 74 HP (55 KW)
Duel Fuel Engine:
Kubota WG2503 – 61 HP (45 KW)
Fuel Tank Capacity:
45 gal. (170 L)
- EASYDRIVE™ Direction sensing drive and steer controls
- AXLDRIVE™ Axle-based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Oscillating steer axle
- Drivable at full height
- 50% Grade-ability
- Wet disc SAHR brakes (front and rear axle)
- Dual module control system with SKYCODED™ color coded and numbered wiring
- Deutz TD2.9L4 diesel or Kubota WG2503 dual fuel engine
- Swing out engine tray
- Swing up cowlings for easy access
- Lockable power disconnect switch
- Proportional joystick controls and speed selector for platform toggle switch controls
- 660 / 1,000 lbs (300 / 454 kg) Dual capacity
- 36” x 96” Platform
- Bolt-in platform railing system
- Lanyard attachment points
- Tri-entry sliding mid rails
- Secondary Guarding Electrical (SGE)
- Overload sensing system
- 110V AC Outlet on platform with GFI
- Tilt alarm (5.0° x 5.0°) with drive and lift cut-out
- Single point emergency lowering
- Hourmeter
- Operator horn
- All motion alarm
- 360° Continuous turret rotation
- Tie down / lifting lugs
- 15 x 19.5 Grip lug foam-filled tires
- Telematics ready
- 2-Year Gold Leaf Warranty (5-year structural warranty)
