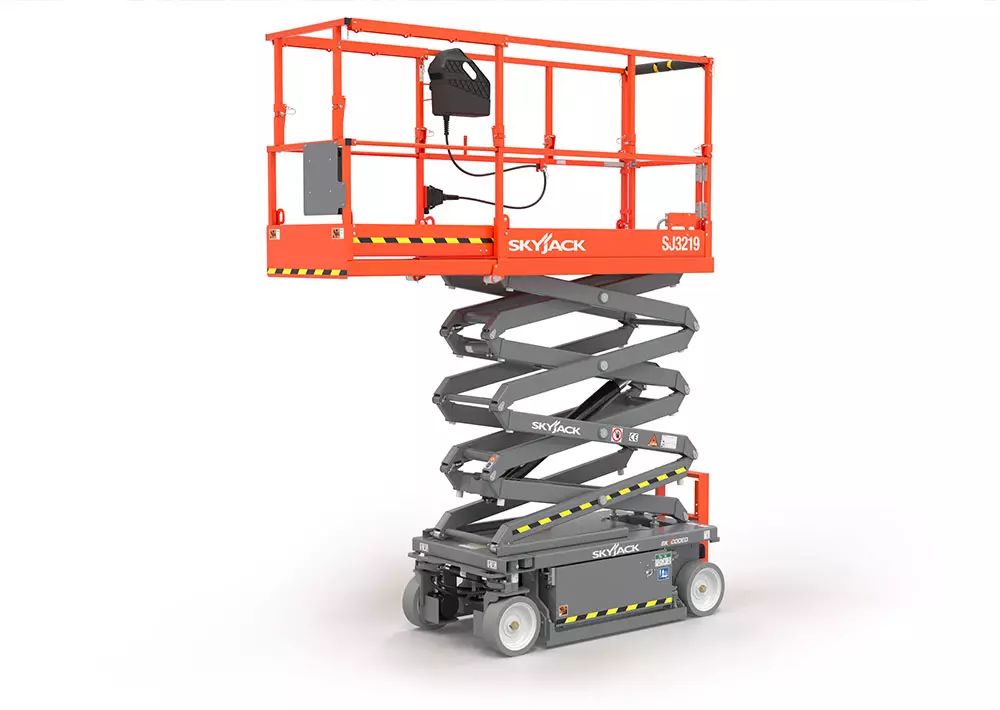

Skyjack SJ3215/19 Scissor Lift

Details

Skyjack‘s SJ3215/19 DC Scissor Lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.

Equipment Type
Aerial Lifts / New Scissor Lifts

Work Height:
SJ3215: 20’ 7” (6.27 m)
SJ3219: 24’ 6” (7.47 m)

Raised Platform Height:
SJ3215: 14’ 7” (4.44 m)
SJ3219: 18’ 6” (5.64 m)

Lowered Platform Height:
SJ3215: 36” (0.91 m)
SJ3219: 41” (1.04 m)

Overall Width:
32” (0.81 m)

Overall Length:
71” (1.80 m)

Weight:
SJ3215: 2,531 lbs (1,148 kg)
SJ3219: 3,255 lbs (1,476 kg)

Lift Time (With Rated Load):
SJ3215: 17 sec
SJ3219: 19 sec

Lower Time (With Rated Load):
SJ3215: 16 sec
SJ3219: 25 sec

Drive Speed (Stowed):
2.1 mph (3.4 km/h)

Drive Speed (Raised):
0.7 mph (1.1 km/h)

Maximum Drive Height:
Full Height

Capacity (overall):
SJ3215: 600 lbs (272 kg)
SJ3219: 500 lbs (227 kg)

  • Drivable at full height
  • Variable speed, front two wheel hydraulic drive
  • 90° Steering (zero inside turning radius)
  • Dual holding brakes
  • SKYCODED™ Color coded and numbered wiring system
  • RAPIDFOLD hinged railing system (SJ3219 only)
  • On-board visual interface with diagnostic capabilities
  • Shroud style, impact resistant composite control box with extended cable
  • Proportional controls for drive & lift functions
  • 3’ (0.91 m) Roll out extension deck
  • 24V DC Power source
  • Low voltage battery protection
  • 25% Grade-ability
  • Solid rubber, non-marking tires
  • Pothole protection system
  • 110V AC Outlet on platform with GFI
  • 28 mph (12.5 m/s) Wind rating
  • Tilt alarm with drive & lift cut-out (3.5° x 1.5°)
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Forklift pockets and tie down / lift lugs
  • Overload sensing system
  • Fold down hinged railing system (SJ3215 only)
  • Half height spring hinged entry gate
  • Telematics ready
  • 2-Year Gold Leaf Warranty (5-year structural warranty)
